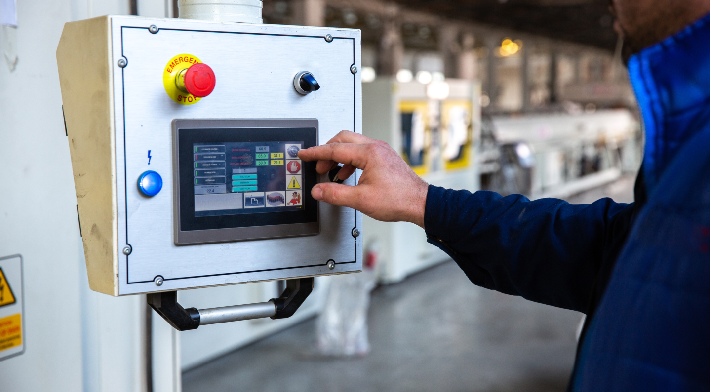

Emergency Stop Button & Push Button

Emergency Stop Buttons (E-Stop) and Push Buttons are critical components of control systems in industrial, commercial, and residential applications. They ensure safety and operational control by offering direct interfaces between operators and equipment.

Feature

Emergency Stop Button (E-Stop)

Push Button

Purpose

Instantly shuts down machinery in emergencies to prevent harm.

Controls machine functions like Start, Stop, and Reset.

Key Features

Red with yellow background for visibility
Fail-safe latching mechanism
Durable, IP65/IP67 rated
ISO 13850, EN 60947-5-5 compliant

Momentary or latching types
Color-coded (Green, Red, Yellow, etc.)
Modular design for upgrades
Optional LED status indication

Types

Twist-to-Release
Key-Release
Pull-to-Release

Flush Push Button
Extended Push Button
Illuminated Push Button
Double-Action Push Button

Applications

Heavy machinery & robotics
Power tools & conveyors
Textile, packaging, and food industries

Operator control panels
Elevators & public transport
Lighting, HVAC, and motor starters

Specifications

Parameter	Emergency Stop Button	Push Button
Voltage Rating	24V DC, 110–230V AC	24V DC, 110–230V AC
Current Rating	5A to 10A	5A to 10A
Enclosure Rating	IP65, IP67	IP65, IP67
Operating Temperature	-25°C to +70°C	-25°C to +70°C
Mounting Diameter	22mm or 30mm	22mm or 30mm
Material	ABS, Polycarbonate, Metal	ABS, Polycarbonate, Metal

Advantages

Immediate emergency response
Improves safety for operators & machines
Minimizes risk during hazardous events

Simplifies machine operations
Customizable for specific control tasks
Reliable and long-lasting components

In summary, Emergency Stop Buttons are crucial for halting operations during emergencies, while Push Buttons serve routine operational commands. Both are essential for modern industrial safety and functionality.

Safety Mat

A Safety Mat is a pressure-sensitive device used in industrial and commercial environments to enhance operator safety. It detects the presence of personnel or objects in hazardous zones, such as around machinery or automated systems, and triggers appropriate safety responses. Safety mats are a critical component of machine safeguarding, reducing the risk of accidents and injuries.

Key Features

Pressure-Sensitive Technology	Activates when pressure is applied, ensuring immediate detection of personnel or objects.
Durable Construction	Made from robust materials to withstand heavy foot traffic, industrial equipment, and harsh environments.
Customizable Shapes and Sizes	Can be tailored to fit specific areas or machine perimeters.
Fast Response Time	Quickly triggers safety systems when activated.
Non-Slip Surface	Provides a secure footing, even in wet or oily conditions.
Fail-Safe Operation	Designed to shut down machinery or trigger alarms in case of damage or malfunction.
Integration Capability	Compatible with most safety relay and control systems.

Working Principle

Pressure Detection	Sensors detect pressure when a person or object steps on the mat.
Signal Transmission	An electrical signal is sent to the safety control system.
Safety Response	Triggers a response like machine stop, alarm, or warning light.
Reset Mechanism	System can be reset after clearing the hazardous condition.

Specifications

Activation Pressure	Typically 300–400 N
Response Time	<20 ms
Material	PVC, rubber, or polyurethane
Temperature Range	-10°C to +60°C
IP Rating	IP65 or higher for industrial environments
Dimensions	Customizable
Lifespan	>1 million operations

Applications

Industrial Machinery	Safety around presses, CNC machines, and robotics.
Automated Systems	Monitors access points in assembly lines.
Warehousing	Helps prevent accidents near conveyors and forklifts.
Public Safety	Installed at escalators, platforms, and doors.
Healthcare	Used in patient monitoring to detect movement or falls.

Advantages

Enhanced Safety: Provides real-time monitoring and immediate response to potential hazards.
Flexible Design: Easily adaptable to various applications and environments.
Cost-Effective: Reduces downtime and costs associated with accidents or equipment damage.
Easy Installation: Simple to deploy and integrate with existing safety systems.
Reliability: Designed for long-term use with minimal maintenance.

Compliance and Standards

ISO 13856-1: Safety of Machinery – Pressure-Sensitive Protective Devices.
EN 1760-1: Safety of Machinery – Pressure-Sensitive Mats and Floors.

Safety mats are a vital part of workplace safety, offering robust protection against accidents in hazardous zones. With customizable options, reliable operation, and compliance with international safety standards, they are indispensable in ensuring the well-being of personnel in various industries.

Belt Alignment with Two-State Output

A Belt Alignment Switch with two-state output is designed to ensure proper alignment of conveyor belts. It detects belt misalignments and provides a signal to take corrective actions. The two-state output system typically triggers alarms or stops the conveyor system when misalignment is detected, ensuring safety and preventing damage to the system.

Key Components

Belt Alignment Switch	Installed along the conveyor belt to detect misalignments.
Two-State Output	Provides a signal when misalignment is detected (on/off).
Alarm System	Triggers an alarm or stops the conveyor when misalignment occurs.

Key Features

Safety Enhancement	Reduces the risk of damage to the conveyor system by detecting misalignments early.
Reliable Operation	Ensures continuous operation by preventing critical faults caused by belt misalignment.
Simple Integration	Easily integrates into existing conveyor control systems.
Adjustable Sensitivity	Customizable misalignment thresholds for different applications.

Advantages

Enhanced Safety	Reduces the risk of accidents caused by misaligned belts.
Minimized Downtime	Prevents belt damage, ensuring continuous operation.
Cost Savings	Extends the life of conveyor belts and associated components.
Simple Integration	Can be easily integrated into existing control systems.
Customizable Settings	Adjustable misalignment thresholds for different applications.

Applications

Mining & Quarrying	Preventing misalignment in conveyors handling bulk materials.
Cement Industry	Protecting conveyor systems from misalignment during material transport.
Power Plants	Monitoring and preventing misalignments in fuel handling systems.
Food & Beverage	Ensuring the proper alignment of conveyors in food production lines.

How It Works

Misalignment Detection: The belt alignment switch detects the misalignment of the conveyor belt.
Signal Transmission: The two-state output sends a signal (on/off) to the control system when misalignment is detected.
Action: The control system triggers corrective actions, such as stopping the conveyor or activating an alarm.

A Belt Alignment Switch with two-state output is an essential safety component that ensures the smooth operation of conveyor systems by detecting and correcting misalignments, thus preventing costly downtime and damage.

Safety Interlock Switch

A safety interlock switch is a critical component in industrial machinery and automation systems, designed to ensure operator safety by preventing equipment operation under unsafe conditions. It serves as a safeguard to protect personnel and equipment from potential hazards by interlocking machine access points with the machine’s operational status.

Key Features

Robust Safety Mechanism	Prevents the operation of machinery unless safety conditions are met (e.g., doors or guards are closed).
Variety of Actuation Mechanisms	Mechanical: Key-based or cam-actuated systems. Non-Contact: Magnetic, RFID, or inductive actuation for high hygiene or harsh environments.
High Durability	Designed for industrial environments, offering resistance to dust, moisture, and vibration. Typically rated to IP65/IP67 or higher.
Failsafe Operation	Ensures equipment shuts down in case of a switch failure or tampering.
Multiple Configurations	Options for positive break contacts (forced disconnection of circuits). Variety of actuator types like plungers, rotaries, or levers.
Compact Design	Easy to install even in tight spaces without compromising performance.
Compliance with Safety Standards	Adheres to international standards like ISO 14119, IEC 60947-5-1, and EN 1088.

Types of Safety Interlock Switches

Tongue (Key) Interlock Switches	Uses a key or actuator to engage the switch. Commonly used for machine guards and access doors.
Hinge Safety Interlock Switches	Designed to detect movement of hinged doors or covers.
Non-Contact Safety Switches	Magnetic, RFID, or inductive switches for tamper-proof and hygienic applications.
Locking Interlock Switches	Incorporates an electromagnetic locking mechanism to keep guards closed until conditions are safe.
Emergency Stop Interlock Switches	Allows immediate shutdown of machinery in case of emergencies.

Working Principle

Interlocking	The safety switch is installed on access points like doors, hatches, or guards. The switch engages only when the door or guard is properly closed.
System Control	The machine’s control circuit is linked to the interlock switch. If the access point is open, the interlock prevents the machine from starting or operating.
Failsafe Mechanism	In case of tampering, damage, or system failure, the interlock triggers a shutdown, ensuring safety.

Applications

Industrial Automation	Conveyor systems, robotic arms, and assembly lines.
Packaging Machinery	Prevents access to moving parts during operation.
Food & Beverage	Hygienic interlocks for cleanable environments.
Pharmaceuticals	Ensures safety in tablet presses and capsule fillers.
Power Plants	Safety controls in high-voltage equipment.

Benefits

Operator Safety	Minimizes the risk of injury by ensuring machinery stops when access points are opened.
Equipment Protection	Prevents damage by ensuring machinery operates under safe conditions.
Regulatory Compliance	Meets safety standards, reducing the risk of legal or regulatory issues.
Customizable Design	Available in various configurations to suit diverse industrial requirements.
Improved Productivity	Reduces downtime by ensuring quick and safe operation.

HT Panel Door Interlock with Panel

Overview

HT (High Tension) panels are crucial components of electrical distribution systems in industrial and commercial setups. To enhance safety and prevent unauthorized or accidental access, door interlocks are integrated with the panel. These interlocks ensure that the panel’s door cannot be opened under unsafe conditions, reducing the risk of electrical hazards.

Key Features of HT Panel Door Interlock

Feature	Description
Safety Mechanism	Prevents opening of the panel door when the panel is live or under load. Protects personnel from exposure to high voltage.
Mechanical Interlock	A robust mechanism that physically locks the door unless certain conditions (e.g., power isolation) are met. Tamper-proof design to prevent accidental bypassing.
Electrical Interlock	Integrated with the control circuitry to disable power supply when the door is open. Ensures that power cannot be restored until the door is securely closed.
Key Lock System (Optional)	Requires a specific key to unlock the door, providing an additional layer of security. Ideal for restricted access areas or critical operations.
Dual Interlock System	Combines both mechanical and electrical interlocks for maximum safety.
Durable Construction	Made from high-strength materials to withstand industrial environments. Resistant to dust, moisture, and corrosion (IP65-rated or higher).

Working Principle

Normal Operation: The interlock system keeps the door securely locked when the panel is energized.
Power Isolation: Once the power supply is turned off (using the main isolator or circuit breaker), the mechanical interlock is released, allowing safe access to the panel.
Interlock Reset: The panel door must be closed properly and locked before power can be restored, ensuring no bypass of safety protocols.

Applications

Electrical distribution and substation systems.
Power generation plants.
Industrial automation and manufacturing plants.
High-voltage testing facilities.

Advantages of HT Panel Door Interlock Systems

Advantage	Description
Enhanced Safety	Protects operators and technicians from accidental contact with live components.
Compliance with Standards	Meets safety regulations like IEC, IS, and other regional standards.
Reduced Downtime	Prevents damage to equipment by avoiding unauthorized access during operation.
Easy Maintenance	Ensures proper shutdown before maintenance, minimizing risks.
Customizable Options	Can be tailored to specific operational and environmental requirements.

Conclusion

HT Panel Door Interlocks are a critical safety feature in high-voltage electrical systems, providing secure access control and ensuring the safety of both personnel and equipment. With robust construction and advanced safety mechanisms, these interlocks are indispensable for modern industrial power distribution setups.

Positioners and Limit Switches (Medium & Heavy Duty Applications)

Overview

Positioners and limit switches are critical components used in industrial automation to control and monitor the position of mechanical devices such as valves, actuators, and machinery. Designed for medium and heavy-duty applications, these devices ensure precise operation, enhance safety, and optimize system performance even in challenging environments.

1. Positioners (Medium & Heavy Duty)

Key Features	Description
High Accuracy	Ensures precise control of actuator or valve positions.
Durable Construction	Built to withstand high pressures, vibrations, and extreme temperatures in medium and heavy-duty applications.
Feedback Mechanism	Provides continuous feedback on the actuator’s or valve’s position for real-time monitoring.
Corrosion Resistance	Enclosures made of stainless steel or aluminum for long-lasting performance in harsh environments.
Integration with Systems	Supports communication with PLC, SCADA, or DCS systems via protocols like HART, Modbus, or Profibus.
Optional Explosion-Proof Design	Available for hazardous environments in industries like oil & gas, chemicals, and mining.

Applications

Control valves in oil refineries and petrochemical plants.
Dampers and actuators in power plants.
Positioning systems in manufacturing and material handling.

2. Limit Switches (Medium & Heavy Duty)

Key Features	Description
Robust Enclosure	Made from die-cast aluminum, stainless steel, or reinforced plastics to withstand heavy-duty operations.
Sealing and Protection	IP65/IP67-rated for dustproof and waterproof performance.
Wide Operating Range	Suitable for high temperatures, heavy loads, and harsh environments.
Variety of Actuator Types	Roller levers, plungers, rod actuators, fork levers for different operational needs.
Mechanical Durability	Designed for millions of cycles for reliability in continuous operations.
Explosion-Proof Options	Certified models for hazardous areas (ATEX, IECEx compliance).
Pre-Wired Options	Simplifies installation and reduces wiring errors.

Applications

Conveyor belt position monitoring in mining and material handling.
End-of-travel detection for cranes, hoists, and gantries.
Safety monitoring in heavy machinery like presses and mills.
Valve and actuator position monitoring in industrial processes.

Medium-Duty vs. Heavy-Duty Comparison

Feature	Medium-Duty Applications	Heavy-Duty Applications
Environment	Moderate conditions with occasional heavy loads.	Harsh environments with extreme stress.
Material	Light metal or reinforced plastic.	Stainless steel or heavy-duty cast aluminum.
Sealing	IP65 for general use.	IP67/IP68 for harsh and wet conditions.
Durability	Millions of cycles in moderate stress.	Extended life under high stress and vibration.
Certification	Basic safety standards.	Explosion-proof, ATEX, or IECEx for hazardous areas.

Benefits of Positioners and Limit Switches

Increased Safety: Prevents accidents by ensuring precise control and monitoring of mechanical systems.
Improved Efficiency: Optimizes performance by accurately controlling and monitoring machinery.
Reduced Downtime: Enhances reliability, minimizing unexpected system failures.
Customizable Options: Adaptable to various industrial requirements with a wide range of models and configurations.
Cost Savings: Long-term durability reduces replacement and maintenance costs.

Industries Served

Oil & Gas: For valve positioning and monitoring in pipelines and refineries.
Power Generation: For actuator control in turbines and dampers.
Automotive: For safety and control in production lines.
Mining and Quarrying: For conveyor and crusher monitoring.

Accessories for Safety Pull Cord Switches

To enhance the functionality, reliability, and ease of use of safety pull cord switches, various accessories are available. These accessories are designed to improve installation, operation, and maintenance while ensuring compliance with safety standards. Below is a list of commonly used accessories for safety pull cord switches:

Accessory	Description	Features
1. Pull Cord (Wire Rope)	High-strength, flexible steel wire rope used to connect the switch over long distances along conveyor systems.	Coated with PVC or nylon for corrosion resistance and durability. Available in various lengths and diameters based on application requirements. Easy to tension and resistant to wear and tear.
2. Turnbuckles	Used to maintain the correct tension in the pull cord system.	Adjustable for fine-tuning cord tension. Made from stainless steel or galvanized steel to withstand harsh environments. Prevents sagging or loosening of the pull cord.
3. Cable Tensioners	Specialized devices to automatically or manually adjust and maintain pull cord tension.	Ensures proper operation of the switch by maintaining consistent tension. Prevents false alarms caused by loose cords.
4. Eye Bolts and Anchors	Used to secure the pull cord along its path and to provide fixed points for attachment.	Corrosion-resistant material for long-term outdoor or industrial use. Available in various sizes to suit cord thickness.
5. Guide Pulleys	Allow smooth routing of the pull cord, especially around corners or bends.	Reduces friction and wear on the pull cord. Constructed from durable materials like nylon or stainless steel. Rotatable to ensure smooth cord movement.
6. Indicator Lights	Visual indicators mounted near the switch to signal its status (activated, fault, or normal operation).	LED-based for energy efficiency and visibility. Optional color-coded lights for enhanced clarity.
7. Junction Boxes	Protective enclosures for electrical connections and wiring of pull cord switches.	Weatherproof and dustproof (IP65/IP67-rated). Includes terminals for easy wiring and cable management.
8. Reset Handles or Knobs	Mechanisms for resetting the pull cord switch after an emergency activation.	Manual or automatic reset options available. Ergonomic design for ease of use.
9. Spring Assemblies	Installed at the ends of the pull cord to absorb tension and reduce strain.	Prevents overstretching and damage to the cord. Improves overall system longevity.
10. Warning Signage	Safety signs placed near pull cord switches to indicate their presence and proper use.	Made from durable materials with reflective surfaces. Compliant with safety standards (e.g., OSHA, ISO).
11. Cord End Clamps	Secures the ends of the pull cord to the switches or anchors.	Ensures a firm and reliable connection. Corrosion-resistant material for industrial use.
12. Lockout/Tagout Devices	Accessories to safely isolate the pull cord switch during maintenance or repairs.	Prevents accidental activation. Compliant with industrial safety standards.
13. Weather Shields	Protective covers for pull cord switches to shield them from environmental factors.	Protects against rain, dust, and UV exposure. Extends the switch’s lifespan in outdoor applications.
14. Communication Modules	Devices for integrating pull cord switches into monitoring systems like SCADA or PLC.	Enables real-time status updates and diagnostics. Supports communication protocols such as Modbus or Ethernet.

Benefits of Using Accessories:

Improves system reliability and operational efficiency.
Reduces downtime and maintenance costs.
Ensures safety compliance in industrial environments.
Extends the overall lifespan of the pull cord system.

These accessories are essential for maintaining and enhancing the performance of safety pull cord systems in various industrial settings.

Safety Pull Cord Switches with Cord Breakage Detection and Addressing System

Safety Pull Cord Switches are critical components in conveyor systems, designed to ensure the safety of personnel and equipment by providing a reliable means to stop the conveyor in emergencies. Equipped with Cord Breakage Detection and an Addressing System, these advanced switches add enhanced safety and diagnostic capabilities to industrial operations.

Key Features

Emergency Stop Functionality	Allows operators to immediately halt the conveyor belt by pulling the cord in case of an emergency.
Cord Breakage Detection	Automatically detects when the pull cord is broken or loosened, ensuring the system remains functional and safe. Prevents undetected failures that could compromise safety.
Addressing System	Enables each switch to be uniquely identified within the system, facilitating precise fault localization and system diagnostics. Simplifies maintenance and troubleshooting by pinpointing the exact switch that triggered an alarm.
Robust Construction	Designed for harsh industrial environments with weatherproof and dustproof enclosures (IP65/IP67-rated). Durable materials resist corrosion, vibration, and mechanical stress.
Dual-Action Mechanism	Provides both manual reset and automatic reset options based on application requirements.
Integration with Monitoring Systems	Easily integrates with SCADA, PLC, or other control systems to provide real-time status updates and alarms.
High Visibility and Accessibility	Bright, easily visible indicators and accessible design ensure quick and effective operation.

Applications & Benefits

Applications	Benefits
Mining and Quarrying: Safety monitoring on long conveyor belts. Material Handling: Ensuring worker safety in warehouses and manufacturing plants. Cement and Steel Industries: Protection for extensive conveyor systems. Food and Pharmaceutical: Safe handling of packaged goods on conveyor lines.	Enhances workplace safety and reduces the risk of accidents. Minimizes downtime by enabling quick identification of issues. Ensures compliance with safety regulations and standards. Lowers maintenance costs with advanced diagnostic features.

This innovative solution is ideal for industries prioritizing worker safety and operational efficiency in conveyor-based systems.

pH Conductivity Meter

A pH Conductivity Meter is a multi-parameter analytical instrument used for measuring pH, conductivity, TDS (Total Dissolved Solids), salinity, and temperature in various liquids. It is widely used in water treatment plants, laboratories, food & beverage industries, pharmaceuticals, and environmental monitoring.

Key Features & Benefits

Dual Measurement Capability	Measures pH and electrical conductivity in a single device.
High Accuracy & Precision	Provides stable and repeatable readings with automatic temperature compensation (ATC).
User-Friendly Interface	Digital display with easy calibration and operation.
Multiple Calibration Points	Supports 1 to 5-point calibration for pH and conductivity to ensure accurate results.
Wide Measurement Range	Covers a broad pH range (0-14), conductivity (μS/cm to mS/cm), and temperature.
Automatic Buffer Recognition	Detects standard pH buffers for hassle-free calibration.
Portable & Benchtop Models	Available in handheld, portable, and laboratory benchtop versions.
Data Logging & Connectivity	Stores multiple readings and can be connected via USB or Bluetooth for data transfer.

Measurement Parameters & Applications

pH Measurement	Measures acidity/alkalinity of a liquid	Water quality testing, food & beverage, pharmaceuticals
Conductivity	Measures ionic concentration & purity	Industrial process control, water treatment, chemical manufacturing
TDS (Total Dissolved Solids)	Indicates dissolved mineral levels	Drinking water analysis, environmental monitoring
Salinity	Determines salt concentration	Aquaculture, marine research, industrial processes
Temperature	Auto temperature compensation for accuracy	Laboratories, field testing, industrial cooling/heating systems

Applications

Water & Wastewater Treatment	Ensures compliance with pH & conductivity standards.
Industrial Process Control	Monitors process water, cooling systems, and chemical solutions.
Food & Beverage Industry	Used for testing milk, juices, soft drinks, and brewing processes.
Pharmaceuticals & Biotechnology	Ensures purity and quality of chemical & biological samples.
Environmental Monitoring	Tests groundwater, lakes, rivers, and industrial discharge.
Aquaculture & Agriculture	Maintains optimal pH & salinity levels in fish farming and irrigation.

Why Choose Our pH Conductivity Meter?

High Accuracy & Auto-Calibration – Ensures consistent & reliable readings.
Durable & Portable – Available in rugged designs for field & laboratory use.
Advanced Data Storage – Stores previous readings for tracking & compliance.
Battery & USB Powered Options – Flexible for on-site & lab-based applications.
Compliance with International Standards – Conforms to ISO, EPA, and ASTM guidelines.

Standard Sample for Calibration

Standard calibration samples are reference materials with known properties, used to verify and adjust the accuracy of measuring instruments. These samples ensure that instruments provide reliable and repeatable results across various industries such as metallurgy, environmental monitoring, pharmaceuticals, and quality control.

Key Features & Benefits

Certified Accuracy	Standard samples are traceable to national and international standards (ISO, NIST, ASTM, BIS, etc.).
Multiple Material Options	Available in metals, alloys, gases, liquids, and powders, depending on calibration requirements.
Wide Application Range	Used in analytical instruments, spectrometers, gas analyzers, and lab equipment calibration.
Customizable Standards	Calibration samples can be tailored to specific industry and instrument needs.
Long-Term Stability	Designed for consistent performance over time with minimal degradation.
Ease of Use	Comes with certificates of analysis (COA) and traceability documentation.

Types of Standard Calibration Samples

Metallurgical Calibration Standards	Used in spectrometers, XRF analyzers, and hardness testers for precise composition analysis.
Water & Environmental Standards	For COD, BOD, TDS, pH, heavy metals, and pollution monitoring instruments.
Electrical Calibration Samples	Used for voltage, current, resistance, and power meters.
Temperature & Humidity Standards	Essential for thermometers, hygrometers, and weather stations.
Gas Calibration Standards	For gas detectors, air quality monitors, and emission analyzers (SO₂, NOx, CO, CO₂, O₂, CH₄, etc.).
Mechanical Calibration Samples	Used for force, pressure, and torque calibration in industrial machines.

Applications

Manufacturing & Quality Control	Ensures accurate product testing and compliance.
Analytical & Research Laboratories	Standardizes scientific measurements.
Environmental Monitoring	Verifies pollution control and air/water quality instruments.
Mining & Metallurgy	Assures elemental analysis accuracy in ores and metals.
Industrial & Safety Equipment	Calibrates sensors for workplace safety compliance.

Why Choose Our Standard Calibration Samples?

Internationally Certified – Traceable to NIST, ISO, ASTM, BIS, and other global standards.
High Precision & Reliability – Maintains instrument accuracy for regulatory compliance.
Wide Industry Compatibility – Suitable for lab, industrial, and field applications.
Customizable Solutions – Available for specific instruments and industries.

These calibration samples are essential for industries that require precision, compliance, and quality assurance.

Glass Beads Making Machine

The Glass Beads Making Machine is designed for efficient and high-precision production of glass beads, widely used in road marking, reflective paints, jewelry, and industrial applications. It ensures consistent bead size, shape, and quality with advanced automation and heating technology.

Key Features & Benefits

High-Temperature Furnace	Ensures uniform bead formation with precise temperature control.
Automatic Feeding System	Maintains continuous production with minimal manual intervention.
Adjustable Bead Sizes	Capable of producing beads in various diameters (e.g., 50µm – 2mm).
Energy-Efficient Operation	Uses optimized heating and cooling processes to reduce power consumption.
Advanced Cooling System	Ensures quick solidification and uniform bead shape.
Precision Control Panel	Digital interface for temperature, speed, and process adjustments.
High Production Capacity	Produces thousands of beads per hour, depending on model specifications.
Low Maintenance & Durable Build	Designed for long-lasting performance with minimal wear.

Applications

Road Marking & Traffic Safety	Produces reflective glass beads for road markings.
Decorative & Jewelry Making	Used for bead crafting, fashion accessories, and artistic designs.
Industrial Coatings & Abrasives	Produces micro glass beads for abrasive blasting and coatings.
Scientific & Medical Use	Small-sized beads used in laboratory testing and biotechnology applications.

Why Choose Our Glass Beads Making Machine?

Superior Precision & Quality Control – Ensures uniform bead size and shape.
Customizable Output – Supports different raw materials and processing settings.
User-Friendly & Automated – Reduces manual work with intelligent automation.
Robust & Reliable Performance – Built for continuous operation in industrial settings.
Meets International Standards – Complies with ISO and ASTM quality requirements.

This Glass Beads Making Machine is a game-changer for industries requiring high-quality glass beads, ensuring efficiency, precision, and cost-effectiveness.

Sample Polishing Machine

The Sample Polishing Machine is designed for precision polishing of metallographic, geological, and material science samples before microscopic or spectroscopic analysis. It ensures a smooth, defect-free surface for accurate inspection in laboratories and research facilities.

Key Features & Benefits

Variable Speed Control	Allows adjustable polishing speeds for different materials.
Multi-Stage Polishing	Supports coarse to fine polishing with different abrasives.
Automatic & Manual Options	Available in semi-automatic and fully automatic models.
High-Precision Polishing	Ensures uniform surface preparation for metallurgical, petrographic, and semiconductor analysis.
Easy-to-Use Interface	User-friendly control panel with digital display.
Low Noise & Vibration	Designed for stable and smooth operation.
Durable Build	Made with stainless steel or heavy-duty polymer for longevity.
Integrated Cooling System	Reduces heat buildup during polishing for optimal results.
Supports Multiple Disc Sizes	Compatible with various polishing pads and abrasive discs.

Applications

Metallurgical & Material Testing	Prepares metal and alloy samples for microscopic analysis.
Geology & Petrography	Smoothens rock, mineral, and core samples for thin section analysis.
Manufacturing & Quality Control	Ensures surface finish verification for industrial components.
Automobile & Aerospace	Used for failure analysis and material integrity testing.
Semiconductor & Electronics	Prepares wafer and circuit board samples for microscopic evaluation.

Why Choose Our Sample Polishing Machine?

High-Performance & Precision – Delivers consistent and repeatable polishing results.
User-Friendly Operation – Designed for easy handling with minimal training required.
Cost-Effective & Low Maintenance – Long-lasting machine with minimal consumable usage.
Versatile & Customizable – Available in single-disc, dual-disc, and programmable models.
Compliant with International Standards – Meets ISO, ASTM, and metallurgical testing requirements.

The Sample Polishing Machine is a crucial tool for laboratories, industries, and research institutions, ensuring high-quality sample preparation for accurate material analysis.

Jaw Crusher / Disc Mill for Sample Preparation

The Jaw Crusher and Disc Mill are essential laboratory and industrial instruments used for crushing, grinding, and reducing the size of solid samples. These devices are commonly used in mining, metallurgy, cement, geology, and material science for sample preparation before chemical or physical analysis.

Key Features & Benefits

High Crushing Efficiency (Jaw Crusher)	Reduces hard, brittle, and medium-hard materials to fine particles.
Adjustable Jaw Opening (Jaw Crusher)	Controls final particle size for precision analysis.
Robust Construction (Jaw Crusher)	Made of hardened steel or tungsten carbide for durability.
Low Maintenance (Jaw Crusher)	Simple design with easy cleaning and minimal wear.
Safety Features (Jaw Crusher)	Includes overload protection and dust-tight design.
Fine Grinding Capability (Disc Mill)	Achieves ultra-fine particle size for accurate analysis.
Consistent & Homogeneous Results (Disc Mill)	Ideal for sample preparation in XRF, XRD, and other analytical methods.
High-Speed Milling (Disc Mill)	Ensures efficient processing of large sample volumes.
Low Noise & Vibration (Disc Mill)	Designed for smooth and safe operation.
Easy Operation & Cleaning (Disc Mill)	User-friendly interface with quick-access cleaning system.

Applications

Geology & Mining	Prepares rock, ore, and mineral samples for analysis.
Material Science & Metallurgy	Processes metals, ceramics, and composites for research.
Cement & Construction Industry	Prepares cement, limestone, and aggregates for quality control.
Petrochemical & Environmental Labs	Ensures accurate sample analysis for regulatory compliance.
Industrial Production & Quality Control	Tests raw materials and finished products.

Why Choose Our Jaw Crusher & Disc Mill?

Superior Crushing & Grinding Performance – Ensures reliable and repeatable results.
Customizable Models – Available in different sizes and materials to fit industry needs.
Energy-Efficient & Low Maintenance – Designed for long-term use in demanding applications.
Compatible with Automated Sample Handling – Can integrate with sample feeders and conveyors.
Meets International Standards – Complies with ISO and ASTM guidelines for laboratory testing.

The Jaw Crusher & Disc Mill are vital tools for accurate and efficient sample preparation, ensuring high-quality analysis in laboratories and industrial environments.

Oil-in-Water Analyzer

The Oil-in-Water Analyzer is a high-precision monitoring system designed for real-time detection and measurement of oil concentration in water. It is used in industrial wastewater treatment, environmental monitoring, offshore oil platforms, and process industries to ensure compliance with regulatory standards and prevent contamination.

Key Features & Benefits

Real-Time Monitoring	Continuously measures oil content in water for instant detection.
High Sensitivity & Accuracy	Detects trace levels of oil down to ppm (parts per million).
Multi-Detection Technology	Uses UV fluorescence, infrared, or laser scattering for accurate analysis.
Non-Contact & Non-Intrusive Analysis	Ensures minimal maintenance and long-term stability.
Automatic Self-Cleaning System	Reduces manual maintenance efforts.
Data Logging & Remote Monitoring	Stores and transmits data via SCADA, IoT, and cloud integration.
Compact & Robust Design	Suitable for harsh industrial and marine environments.
Regulatory Compliance	Meets EPA, CPCB, and ISO standards for environmental safety.

Applications

Wastewater Treatment Plants	Monitors oil contamination before discharge into the environment.
Oil & Gas Industry	Detects oil leaks in offshore rigs, refineries, and pipelines.
Petrochemical & Manufacturing	Ensures process water quality in production facilities.
Power Plants	Prevents oil contamination in cooling and process water.
Marine & Shipping Industry	Detects oil spills in ballast and bilge water.
Environmental Monitoring Agencies	Tracks water pollution levels in lakes, rivers, and oceans.

Why Choose Our Oil-in-Water Analyzer?

Fast & Reliable Detection – Provides instant alerts on oil contamination.
User-Friendly Interface – Features touchscreen display and automated calibration.
Low Maintenance & Cost-Effective – Designed for continuous operation with minimal downtime.
Customizable to Industry Needs – Available in portable, online, and inline models.
Seamless Integration – Connects with existing industrial automation and monitoring systems.

The Oil-in-Water Analyzer is a critical tool for water quality control, environmental protection, and industrial safety.

Electron Probe Micro Analyzer (EPMA)

The Electron Probe Micro Analyzer (EPMA) is a high-precision analytical instrument used for elemental and chemical composition analysis at the microscopic level. It is widely used in metallurgy, geology, material science, and semiconductor industries for analyzing the distribution of elements in solid materials with high spatial resolution.

Key Features & Benefits

High-Resolution Elemental Mapping	Detailed composition analysis at micron scale for precise material investigation.
WDS Technology	Wavelength Dispersive Spectroscopy provides high accuracy in detecting trace elements.
Multi-Element Detection	Analyzes multiple elements simultaneously during a single scan.
Non-Destructive Testing	Preserves sample structure for repeat and in-depth analysis.
Advanced Imaging	Combines electron imaging with elemental mapping for comprehensive analysis.
Automated Reporting	3D element distribution models and data reports with minimal manual effort.
Standards Compliant	Meets ISO, ASTM, and BIS norms for accurate and certified analysis.
PC & Cloud Integration	Supports remote access, data sharing, and integration with laboratory systems.

Applications

Material Science & Metallurgy	Analyzes alloys, ceramics, and composites for structural and elemental insights.
Geology & Mineral Exploration	Determines element distribution in ores and rocks for resource assessment.
Steel & Manufacturing	Assists in quality assurance of welds, coatings, and metals.
Semiconductor & Electronics	Identifies contaminants and analyzes diffusion in microelectronic materials.
Pharmaceutical & Chemical R&D	Supports formulation analysis and microscopic material composition studies.
Aerospace & Defense	Examines high-performance materials for critical structural components.

Why Choose Our EPMA?

Ultra-High Sensitivity – Detects elements at parts-per-million (ppm) concentration.
Fast & Accurate Analysis – Delivers precise analytical results within minutes.
Non-Destructive Testing – Preserves the sample for further analysis or archiving.
User-Friendly Interface – Touchscreen control with intelligent automation and workflow guidance.
Cost-Effective & Reliable – Designed for long-term performance in labs and industrial environments.

The Electron Probe Micro Analyzer (EPMA) is an essential tool for detailed material characterization, quality control, and research applications across industries.

Sulfur Analyzer for Coal Testing

The Sulfur Analyzer is a high-precision instrument designed to determine the total sulfur content in coal and other solid fuels. It is essential for industries that require fuel quality analysis, emission control, and compliance with environmental regulations. This analyzer helps in evaluating coal combustion properties, pollution control, and fuel classification.

Key Features & Benefits

High-Precision Measurement	Accurately determines sulfur content in coal and related fuels.
Automated Sample Handling	Enables quick, consistent testing with minimal manual effort.
Wide Detection Range	Detects low to high sulfur levels in different coal grades.
Advanced Combustion & Detection	Uses infrared detection and high-temp combustion for precise analysis.
Standards Compliant	Meets ASTM D4239, ISO 334, and BIS specifications.
User-Friendly Interface	Touchscreen controls with PC connectivity and data logging support.
Low Maintenance Design	Durable and self-cleaning for long-term industrial usage.
Real-Time Data Transmission	Integrated with LIMS and cloud-based platforms for instant data access.

Applications

Power Plants & Thermal Stations	Monitors sulfur levels to optimize combustion and reduce emissions.
Cement & Steel Industry	Helps ensure regulatory compliance and fuel quality.
Research & Testing Laboratories	Used in analytical research, fuel studies, and material classification.
Coal & Biomass Industry	Supports emission classification and fuel evaluation.
Petrochemical & Mining Sectors	Crucial for testing raw materials and processed fuels for sulfur content.

Why Choose Our Sulfur Analyzer?

Fast & Efficient Analysis – Provides rapid sulfur measurement for bulk sample testing.
High Sensitivity & Accuracy – Detects trace amounts of sulfur for precise quality control.
Safe & Environmentally Friendly – Built with automated safety mechanisms to prevent contamination.
Cost-Effective & Low Maintenance – Long-lasting design ensures minimal operational costs.
Cloud & PC Integration – Allows seamless data sharing and remote monitoring.

The Sulfur Analyzer for Coal Testing is an indispensable tool for ensuring fuel quality, controlling emissions, and maintaining compliance with environmental standards.

Proximate Analyzer for Coal – Moisture, Volatile Content (VC), Fixed Carbon (FC), and Ash Testing

The Proximate Analyzer is an advanced instrument designed for the rapid and accurate determination of key parameters in coal and solid fuels. It performs automated Moisture, Volatile Matter, Fixed Carbon, and Ash content analysis, making it an essential tool for industries like thermal power plants, steel, cement, and research laboratories.

Key Features & Benefits

Fully Automated Operation	Eliminates manual handling and ensures precision in multiple sample analysis.
Multi-Sample Testing	Analyzes up to 19 samples simultaneously for high efficiency.
High-Speed Analysis	Delivers quick and accurate results with minimal intervention.
Advanced Furnace Technology	Provides uniform heating for consistent moisture, VC, and ash measurement.
Real-Time Data & Reporting	Touchscreen interface with automated report generation and data logging.
Standardized Testing Methods	Complies with ASTM D3172, ISO 11722, and BIS standards.
Low Maintenance & Energy Efficient	Built for durability with minimal power consumption and maintenance needs.

Applications

Power Generation Plants	Analyzes coal quality for combustion optimization and energy production.
Cement & Steel Industry	Evaluates volatile matter and carbon content for proper fuel selection.
Research & Testing Laboratories	Used in academic and industrial research for coal and biomass studies.
Biomass & Alternative Fuels	Tests bio-coal and renewable fuels for calorific and material consistency.
Petrochemical & Mining Sectors	Supports fuel classification and performance evaluation based on ash/moisture.

The Proximate Analyzer for Coal Testing is an essential tool for ensuring fuel quality, optimizing combustion efficiency, and maintaining compliance with regulatory standards.

Automatic Bomb Calorimeter for Coal & Biofuel Testing

The Automatic Bomb Calorimeter is a high-precision instrument designed to measure the calorific value (energy content) of solid and liquid fuels, such as coal, biomass, biofuels, petroleum products, and waste materials. This system ensures accurate and repeatable heat value determination, making it essential for industries like power generation, cement, steel, petrochemical, and research laboratories.

Key Features & Benefits

Fully Automated Operation	Reduces manual handling and ensures faster, error-free analysis.
High Precision Measurement	Determines Gross and Net Calorific Value with accuracy.
Oxygen Bomb Technology	Safe and efficient combustion in a sealed chamber.
Advanced Cooling System	Enables quick test cycles through rapid cooling.
User-Friendly Interface	Touchscreen with intuitive software for analysis.
Compliance with Global Standards	Follows ASTM D5865, ISO 1928, BIS standards.
Real-Time Data Output	Automatically logs and transfers test data.
Low Maintenance	Built for durability using corrosion-resistant materials.

Applications

Power Plants & Thermal Stations	Measures fuel efficiency of coal and biomass.
Cement & Steel Industry	Ensures combustion performance and fuel selection.
Research & Testing Laboratories	Used in academic and industrial R&D environments.
Biofuel & Renewable Energy Sector	Analyzes energy content of biomass and green fuels.
Petrochemical & Refinery Industry	Tests residual fuels, oils, and waste-derived energy sources.

The Automatic Bomb Calorimeter is an essential tool for fuel analysis, helping industries optimize energy consumption and maintain quality standards.

Universal Testing Machine (UTM) for Metal & Pallet Compression Testing

The Universal Testing Machine (UTM) is a high-precision instrument designed for mechanical testing of metals, pallets, plastics, composites, and other materials. It performs tensile, compression, flexural, shear, and other strength tests to evaluate material properties such as yield strength, ultimate tensile strength, elongation, and load-bearing capacity.

Key Features & Benefits

Multi-Function Testing	Supports tensile, compression, bending, and shear tests for metals, pallets, plastics, and composites.
High-Precision Load Cells	Provides accurate force measurement with real-time data visualization.
User-Friendly Software & Interface	Touchscreen with graphical analysis and automatic report generation.
Wide Load Capacity Options	Available in 1 kN to 2000 kN capacities.
Automated & Manual Control Modes	Ensures precision and repeatability in testing.
Customizable Grips & Fixtures	Compatible with various grips and sample types.
Meets International Standards	Complies with ASTM, ISO, BIS, and industry norms.

Applications

Metal Testing	Evaluates tensile strength, ductility, and stress-strain behavior.
Pallet Compression Testing	Tests load-bearing capacity and deformation.
Material Science & R&D	Used for developing and studying material properties.
Manufacturing & Quality Control	Ensures product quality and performance consistency.
Plastic & Polymer Testing	Determines strength, elasticity, and impact resistance.
Automotive & Aerospace	Verifies strength of structural metals and composites.

The UTM for Metal & Pallet Compression Testing is a robust, precise, and essential tool for quality assurance, material research, and industrial applications.

X-Ray Inspection System

The X-Ray Inspection System is a high-precision, non-destructive testing (NDT) solution designed for quality control, product inspection, and contamination detection in industries such as food, pharmaceuticals, electronics, and manufacturing. Using advanced X-ray imaging technology, this system ensures high accuracy, reliability, and compliance with safety standards.

Key Features & Benefits

High-Resolution X-Ray Imaging	Detects foreign objects, defects, and inconsistencies in products.
Non-Destructive Testing (NDT)	Examines products without damaging or altering them.
Versatile Material Detection	Identifies metal, glass, stone, bone, plastic, and more.
Automated Defect Recognition (ADR)	AI-based software highlights defects in real time.
Multi-Industry Compatibility	Suitable for food, pharma, electronics, and manufacturing.
User-Friendly Interface	Touchscreen operation, real-time monitoring, automated reporting.
Customizable Inspection Modes	Adaptable to different product types, shapes, and densities.
Regulatory Compliance	Meets FDA, HACCP, ISO, and industry quality standards.

Applications

Food & Beverage Industry	Detects contaminants like metal, bone, plastic, and glass in packaged and processed foods.
Pharmaceuticals & Healthcare	Inspects tablets, blister packs, and syringes for defects or contamination.
Electronics & Semiconductor	Identifies soldering issues, missing parts, and internal failures.
Automotive & Aerospace	Checks welds, assemblies, and structural defects.
Manufacturing & Industrial	Detects cracks, voids, and inconsistencies in castings and components.

The X-Ray Inspection System is a powerful, reliable, and cost-effective solution for industries demanding high-quality control and contamination detection.

Portable XRF Analyzer Spectrometer for Metal & Mineral Testing

The Portable XRF Analyzer Spectrometer is a state-of-the-art, handheld device designed for rapid and non-destructive elemental analysis of metals, minerals, ores, alloys, and industrial samples. This advanced X-ray Fluorescence (XRF) technology delivers precise results within seconds, making it ideal for on-site material verification, mining exploration, scrap sorting, and industrial quality control.

Key Features & Benefits

Fast & Accurate Elemental Analysis	Detects elements from Mg (Magnesium) to U (Uranium) in a few seconds.
Portable & Lightweight	Handheld design allows easy on-site testing without lab dependencies.
Non-Destructive Testing (NDT)	Preserves samples while providing detailed chemical composition.
Wide Application Range	Suitable for metals, ores, minerals, scrap, soil, cement, alloys, and industrial materials.
User-Friendly Touchscreen Interface	Easy operation, real-time results, and customizable reporting.
Advanced Calibration & Software	Multi-standard calibration for high accuracy and repeatability.
No Sample Preparation Required	Works on solid, powder, and liquid samples.
Rugged & Durable	Designed for harsh industrial and field environments with IP-rated protection.
Regulatory Compliance	Meets ASTM, ISO, and BIS standards for material testing.

Applications

Mining & Geology	Analyzes minerals, ores, and exploration samples for grade control.
Metals & Alloys Identification	Ensures precise sorting of ferrous & non-ferrous metals.
Scrap Recycling & Sorting	Quickly verifies metal composition in the recycling industry.
Industrial Quality Control	Confirms material specifications for manufacturing & production.
Environmental Monitoring	Detects heavy metals in soil and hazardous waste.
Aerospace & Automotive	Checks raw materials and coatings for compliance.
Research & Development (R&D)	Supports laboratory studies in metallurgy and material science.

The Portable XRF Analyzer Spectrometer is the perfect on-the-go solution for industries requiring immediate and accurate material composition analysis.

EDXRF Analyzer for Mineral, Ferroalloy, Iron Ore, Fly Ash, and Limestone Testing

The Energy Dispersive X-Ray Fluorescence (EDXRF) Analyzer is a high-precision, non-destructive testing solution designed for elemental analysis of minerals, ferroalloys, iron ore, fly ash, and limestone. It provides fast, accurate, and reliable results, making it ideal for quality control, raw material verification, and environmental compliance in mining, steel, cement, and power industries.

Key Features & Benefits

Comprehensive Elemental Analysis	Detects major, minor, and trace elements from sodium (Na) to uranium (U).
Fast & Non-Destructive Testing (NDT)	Provides instant results without damaging the sample.
High Accuracy & Sensitivity	Capable of analyzing low-concentration elements with excellent repeatability.
Minimal Sample Preparation	Works with solid, powder, pellet, and liquid samples.
Portable & Benchtop Models	Available in handheld XRF for field analysis and laboratory EDXRF for detailed composition testing.
User-Friendly Operation	Touchscreen interface, automated calibration, and real-time data output.
Low Operational Costs	No chemical reagents or consumables required, making it cost-effective.
Regulatory Compliance	Meets ASTM, ISO, and BIS standards for mineral and metal analysis.

Applications

Mining & Exploration	Determines elemental composition of iron ore, limestone, and minerals for grade control and resource estimation.
Steel & Ferroalloy Industry	Ensures quality control in production and raw material testing.
Power Plants & Cement Industry	Analyzes fly ash, clinker, and limestone for process optimization.
Environmental Monitoring	Monitors heavy metals and pollutants in fly ash and industrial waste.
Geochemical & Geological Studies	Supports research and exploration projects in metallurgy and mineralogy.

This EDXRF Analyzer is a powerful, cost-effective, and reliable solution for industries needing accurate elemental analysis of minerals, metals, and industrial by-products.

Spectrometer for Metal Testing

The Spectrometer for Metal Testing is a high-precision Optical Emission Spectroscopy (OES) or X-Ray Fluorescence (XRF) device designed to accurately analyze the composition of ferrous and non-ferrous metals. It provides rapid, reliable, and non-destructive elemental analysis for quality control, material verification, and compliance testing in steel, foundry, aerospace, automotive, and manufacturing industries.

Key Features & Benefits

Wide Material Compatibility	Tests steel, aluminum, copper, brass, titanium, nickel, cobalt, zinc, and other alloys.
High-Precision Elemental Analysis	Detects trace elements, carbon, sulfur, phosphorus, and other key components.
Fast & Accurate Results	Provides instant, lab-quality analysis within seconds.
Non-Destructive Testing (NDT)	Preserves the sample while delivering detailed composition analysis.
Portable & Benchtop Models	Available in handheld XRF spectrometers for field testing and stationary OES for lab-grade precision.
User-Friendly Interface	Touchscreen operation, intuitive software, and real-time data display.
Advanced Calibration & Data Storage	Supports multi-standard calibration and allows seamless data export.
Compliance with Industry Standards	Meets ASTM, ISO, and BIS certification requirements for metals and alloys.

Applications

Metallurgical & Foundry Testing	Ensures quality control and material verification in metal production.
Automobile & Aerospace Industry	Analyzes critical components for safety and performance.
Construction & Structural Engineering	Confirms material strength and composition for durability.
Manufacturing & Industrial Processing	Prevents material mix-ups and ensures compliance.
Scrap Metal & Recycling	Identifies and sorts ferrous & non-ferrous metals for processing.
Oil & Gas Industry	Detects corrosion-resistant alloys in pipelines and refineries.
Research & Development (R&D)	Supports metallurgical research and innovation.

This Spectrometer for Ferrous & Non-Ferrous Metal Testing is an essential tool for industries requiring rapid, accurate, and non-destructive metal analysis for quality assurance and regulatory compliance.

Mist Cannon for Dust Suppression

The Mist Cannon, also known as a Fog Cannon or Dust Suppression System, is an advanced dust control solution designed to efficiently reduce airborne dust and particulate matter in construction sites, mining areas, industrial plants, and waste management facilities. It uses high-pressure water mist technology to suppress dust, improving air quality and ensuring a safer work environment.

Key Features & Benefits

High-Efficiency Dust Suppression	Uses fine water mist particles to trap and settle dust in the air.
Long-Range Spraying	Covers distances from 20 meters to over 100 meters, depending on the model.
Low Water Consumption	Uses high-pressure atomization to maximize efficiency while conserving water.
360° Rotating & Tilting Mechanism	Ensures full area coverage with adjustable spray angles.
Portable & Fixed Models	Available in truck-mounted, trolley-mounted, and stationary units for various applications.
Remote Control & Automated Operation	Easy-to-operate systems with remote access and automatic spray cycles.
Dust & Airborne Particle Control	Effectively suppresses PM2.5, PM10, silica dust, coal dust, and industrial pollutants.
Environmentally Friendly & Safe	Reduces the need for chemical dust suppressants, making it eco-friendly.

Applications

Construction Sites	Controls dust from demolition, excavation, and roadwork activities.
Mining & Quarrying	Reduces coal dust, silica dust, and fine particulate matter.
Cement & Steel Plants	Improves air quality by minimizing airborne pollutants.
Coal Handling Plants (CHP)	Suppresses dust emissions from coal storage and transportation.
Waste Management & Landfills	Controls odors and airborne bacteria in municipal waste processing.
Agriculture & Wood Processing	Minimizes dust from grain handling, sawmills, and biomass operations.
Ports & Bulk Material Handling	Reduces dust at loading/unloading stations and conveyor belts.

This Mist Cannon for Dust Suppression is an ideal solution for industries looking to control airborne dust, protect workers’ health, and maintain environmental compliance.

Gas Sampling System

The Gas Sampling System is a high-precision solution designed for accurate collection, filtration, and analysis of gases in industrial and environmental applications. It ensures safe and contamination-free sampling of toxic, flammable, and corrosive gases from emission sources, process industries, and environmental monitoring stations.

Key Features & Benefits

High-Purity Gas Sampling	Ensures uncontaminated collection for precise analysis of SO₂, NOx, CO, CO₂, O₂, H₂S, VOCs, and other gases.
Multiple Sampling Methods	Supports continuous, batch, and isokinetic sampling for various applications.
Filtration & Moisture Removal	Equipped with pre-filters, moisture traps, and condensate removal systems to prevent sample degradation.
Temperature-Controlled Sampling	Maintains optimal sample conditions using heated probes and lines to prevent condensation.
Customizable Probe & Tubing Materials	Available in stainless steel, PTFE, and corrosion-resistant materials for handling different gases.
Automatic Sample Flow Regulation	Ensures constant flow rates for accurate measurement and analysis.
Remote Monitoring & Data Logging	Integrates with IoT, SCADA, and cloud-based systems for real-time analysis.
Compatible with Gas Analyzers	Works with CEMS (Continuous Emission Monitoring Systems), Process Gas Analyzers, and Portable Gas Detectors.

Applications

Continuous Emission Monitoring (CEMS)	Used in power plants, refineries, and cement industries for regulatory compliance.
Process Industry Gas Analysis	Helps in quality control and process optimization in chemical, pharmaceutical, and steel plants.
Environmental Air Quality Monitoring	Collects samples for pollution assessment and CPCB/SPCB compliance.
Industrial Safety & Explosion Prevention	Detects toxic and combustible gases in hazardous work environments.
Oil & Gas Industry	Ensures safe and accurate sampling of hydrocarbons and flue gases.
Research & Laboratory Analysis	Supports high-precision gas chromatography and spectroscopy applications.

This Gas Sampling System is an essential tool for industries, environmental agencies, and research institutions requiring accurate and efficient gas analysis.

Automatic Mercury / Cadmium Analyser

The Automatic Mercury (Hg) & Cadmium (Cd) Analyser is a high-precision, real-time monitoring system designed for the detection and quantification of mercury and cadmium contamination in water, wastewater, industrial effluents, soil, and air emissions. It ensures regulatory compliance with CPCB, SPCB, EPA, and other environmental standards for heavy metal monitoring.

Key Features & Benefits

High-Sensitivity Detection	Uses atomic absorption spectroscopy (AAS) or cold vapor atomic fluorescence spectrometry (CVAFS) for ultra-low-level detection.
Real-Time Automated Analysis	Provides continuous and accurate measurements with minimal manual intervention.
Multi-Sample & Multi-Matrix Analysis	Capable of analyzing water, wastewater, industrial discharge, sludge, and air samples.
Online & Lab Versions Available	Choose between online monitoring systems for real-time CPCB reporting or benchtop/lab models for research applications.
Data Transmission & Cloud Integration	Supports IoT, Modbus, and GPRS connectivity for remote monitoring and regulatory reporting.
Auto Calibration & Self-Cleaning Mechanism	Ensures long-term accuracy and low maintenance.
Meets International Environmental Standards	Compliant with ISO, EPA, CPCB, WHO, and SPCB regulations for mercury and cadmium analysis.
Industrial-Grade & Compact Design	Suitable for harsh environments, industrial plants, and environmental monitoring stations.

Applications

Industrial Effluent Monitoring	Ensures compliance with heavy metal discharge norms in manufacturing and chemical industries.
Drinking Water & Wastewater Treatment Plants	Detects toxic mercury and cadmium contamination for safe water supply.
Environmental & Regulatory Compliance	Used in government agencies, pollution control boards, and research institutions.
Laboratory & Research Studies	Supports academic and industrial research on heavy metal contamination.
Mining & Metallurgical Industries	Monitors mercury and cadmium emissions from mining, smelting, and electroplating operations.
Marine & Aquatic Ecosystem Monitoring	Tracks heavy metal pollution affecting water bodies and aquatic life.

This Automatic Mercury / Cadmium Analyser is an essential tool for industries, laboratories, and regulatory bodies to monitor, control, and prevent heavy metal contamination in the environment.

Environmental Parameter Display Board

The Environmental Parameter Display Board is a real-time LED/LCD digital display system designed for continuous monitoring and public visibility of key environmental parameters. It ensures compliance with pollution control norms while promoting environmental awareness in industries, public areas, and workplaces.

Key Features & Benefits

Real-Time Display of Environmental Data	Shows AQI, Temperature, Humidity, PM2.5, PM10, SOX, NOX, CO, CO₂, O₂, Noise Levels, Water Quality (pH, TDS, Turbidity), and more.
Large LED/LCD Display	Available in custom sizes, outdoor/indoor versions, and high-brightness options for clear visibility.
Wireless & Cloud Connectivity	GSM, GPRS, Wi-Fi, and Modbus support for seamless data transmission.
Integration with Sensors & Pollution Monitoring Systems	Can connect to CEMS, AAQMS, effluent monitoring, weather stations, and IoT-based environmental platforms.
User-Defined Alerts & Notifications	Configurable for safe limit breaches, warnings, and real-time updates.
Weatherproof & Industrial-Grade Design	IP65/IP67-rated for harsh industrial & outdoor environments.
Complies with CPCB/SPCB Guidelines	Ensures regulatory compliance for pollution control boards & environmental audits.
Multi-Language Support	Customizable in English, Hindi, and regional languages.

Applications

Industries & Factories	To comply with pollution control regulations and display emissions data.
Smart Cities & Public Places	Helps municipalities inform citizens about air & water quality levels.
Hospitals & Healthcare Facilities	Ensures air quality & hygiene monitoring for patient safety.
Corporate Offices & IT Parks	Promotes employee health & safety through environmental awareness.
Educational Institutes & Research Centers	For environmental education & sustainability programs.
Construction & Mining Sites	Helps track dust, noise, and air pollution in high-risk zones.

This advanced Environmental Display Board is the perfect solution for real-time environmental monitoring, compliance, and public awareness.

Ground Water Flow Logger

The Ground Water Flow Logger is a high-precision device designed for real-time monitoring of groundwater movement, flow rate, and direction in borewells, aquifers, and underground water sources. It ensures accurate data collection for hydrogeological studies, water resource management, and environmental compliance.

Key Features & Benefits

Real-Time Groundwater Flow Monitoring	Measures velocity, flow direction, and volume with high accuracy.
Multi-Parameter Sensing	Can integrate with water level, temperature, EC, pH, TDS, and turbidity sensors.
Automatic Data Logging & Transmission	Supports GPRS, IoT, Modbus, and Cloud Integration for real-time CPCB & SPCB reporting.
Long Battery Life & Solar Compatibility	Operates in remote locations with minimal maintenance.
Robust & Waterproof Design	IP68-rated for submersible operation in borewells and groundwater wells.
User-Friendly Interface	Data accessible via mobile apps, cloud platforms, and SCADA integration.
Regulatory Compliance	Meets CPCB, CGWA, and international water resource management guidelines.

Applications

Groundwater Resource Management	Helps governments & water authorities in sustainable water usage.
Industrial & Environmental Monitoring	Ensures compliance with water extraction and pollution norms.
Hydrogeological & Research Studies	Used by scientists & researchers for groundwater mapping.
Irrigation & Agriculture	Helps farmers optimize water use for crop sustainability.
Municipal & Urban Planning	Supports smart city projects in groundwater conservation.
Mining & Construction Sites	Prevents water-related hazards in excavation and tunneling.

This state-of-the-art Ground Water Flow Logger provides actionable insights for sustainable water management, ensuring better resource planning and environmental protection.

Continuous Particulate Monitor with XRF Technology

The Continuous Particulate Monitor with X-Ray Fluorescence (XRF) technology is an advanced system designed for real-time monitoring of airborne particulate matter (PM) along with elemental composition analysis. This system provides high-precision measurement of PM concentrations (PM2.5, PM10, TSP) while simultaneously identifying heavy metals and toxic elements in the air, ensuring compliance with environmental and industrial safety regulations.

Key Features & Benefits

Real-Time Monitoring	Measures PM (TSP, PM10, PM2.5) levels in ambient and industrial environments.
XRF-Based Elemental Analysis	Identifies hazardous elements like Pb (Lead), Hg (Mercury), As (Arsenic), Cd (Cadmium), Cr (Chromium), and more in particulate matter.
Regulatory Compliance	Complies with CPCB, USEPA, EU, and other international air quality standards.
Automated Sampling & Analysis	No chemical reagents required, reducing maintenance and operational costs.
Multi-Parameter Sensing	Can integrate with SOX, NOX, CO, CO₂, O₂, VOC monitoring systems.
Seamless Data Transmission	Supports Modbus, IoT, GPRS, Cloud-based data logging, and CPCB/SPCB server integration.
High Sensitivity & Accuracy	Detects elements down to parts per billion (ppb) levels for precise air quality assessment.
Weatherproof Design	Built for harsh environments with IP-rated enclosures.

Applications

Industrial Air Quality Monitoring	Steel plants, cement industries, refineries, power plants, and chemical factories.
Urban & Smart City Monitoring	Helps municipalities track air pollution and enforce regulations.
Hazardous Workplace Monitoring	Ensures worker safety in mines, smelters, and heavy metal processing units.
Environmental Research	Supports government agencies, NGOs, and research institutions.
Roadside & Traffic Pollution	Helps transport departments control vehicular emissions.
Sensitive Locations Monitoring	Hospitals, schools, and residential areas for pollution monitoring.

This next-generation air quality monitoring system helps industries, environmental agencies, and regulatory bodies take proactive steps in pollution control, compliance, and health protection.

Ambient Air Quality Monitoring System
For PM2.5, PM10, SOX, NOX, CO, CO₂

The Ambient Air Quality Monitoring System (AAQMS) is designed for real-time monitoring of air pollutants in industrial, urban, and environmental settings. It measures key pollutants such as PM2.5, PM10, SOX, NOX, CO, and CO₂, ensuring compliance with CPCB, SPCB, and international environmental standards (USEPA, EU, WHO).

Key Features & Benefits

Real-Time Monitoring	Continuous data on PM2.5, PM10, SOX, NOX, CO, and CO₂.
Advanced Sensor Technology	Optical, electrochemical, and NDIR sensors for high accuracy.
Regulatory Compliance	Meets CPCB, USEPA, EU, WHO air quality standards.
Data Transmission	GPRS, IoT, Modbus, and Cloud support for real-time CPCB/SPCB reporting.
Weatherproof Design	IP65-rated enclosure for reliable outdoor use.
Calibration & Diagnostics	Automated for long-term accuracy and minimal human intervention.
Energy Efficiency	Low power consumption with long operational lifespan.

Applications

Industries & Manufacturing	Emission control and air compliance.
Construction & Mining	Dust level and air quality monitoring.
Smart Cities	Public health and environmental data tracking.
Airports & Rail Stations	Monitoring commuter air quality levels.
Environmental Agencies	Data for pollution control and policy planning.
Sensitive Areas	Hospitals, schools, and residential zones protection.

This cutting-edge AAQMS helps industries, governments, and communities monitor air quality, reduce pollution, and ensure a healthier environment.

Flue Gas Flow Monitoring System

The Flue Gas Flow Monitoring System is a high-precision instrument designed for real-time measurement of gas flow rates in industrial stacks and chimneys. It ensures compliance with CPCB, SPCB, and international environmental standards while helping industries optimize fuel efficiency and reduce emissions.

Key Features & Benefits

Real-Time Flue Gas Flow Measurement	Accurately monitors volumetric and mass flow rates of stack gases.
Advanced Sensor Technology	Uses ultrasonic, thermal mass, or differential pressure sensors.
Regulatory Compliance	Complies with CPCB/SPCB, USEPA 40 CFR Part 60, EN 15267, ISO 14164.
Data Connectivity	Supports GPRS, Modbus, Ethernet, and cloud integration for CPCB servers.
Durability	High resistance to temperature, corrosion, and fouling.
Calibration & Diagnostics	Automated calibration and self-checks for accurate performance.
CEMS Integration	Compatible with SO₂, NOₓ, CO, CO₂, and O₂ monitoring systems.
Low Maintenance	Self-cleaning and anti-fouling designs reduce operational costs.

Applications

Thermal Power Plants	Monitoring flue gas from boilers and stacks.
Steel & Cement Industries	Ensuring emission control in furnaces and kilns.
Refineries & Petrochemicals	Managing gas flow in distillation and combustion processes.
Waste Incineration	Measuring emissions from hazardous waste burning.
Automobile & Foundry	Controlling emissions from thermal processing units.
Fertilizer & Chemicals	Flow monitoring in reactors and scrubbers.
Environmental Monitoring	Compliance auditing by pollution boards.

This state-of-the-art flue gas flow monitoring system helps industries achieve emission control, fuel optimization, and compliance with environmental regulations.

Online Stack Dust Monitor

The Online Stack Dust Monitor is a continuous particulate emission monitoring system designed for real-time measurement of dust and particulate matter (PM) in industrial stack emissions. It ensures compliance with CPCB, USEPA, and other environmental regulations by providing accurate, continuous, and reliable dust concentration data.

Key Features & Benefits

Real-Time Dust Measurement	Monitors PM10, PM2.5, and TSP in stack emissions.
Advanced Sensor Technology	Electro-optical, Triboelectric, and Laser Scattering for high precision.
Regulatory Compliance	Meets CPCB, USEPA 40 CFR Part 60, ISO 9096, EN 14181.
Seamless Data Transmission	Real-time connectivity to CPCB/SPCB via GPRS, Modbus, Ethernet, Cloud.
Calibration & Diagnostics	Zero and span calibration with self-diagnostics ensure long-term accuracy.
Weatherproof Design	IP65-rated for harsh industrial environments.
Low Maintenance	Non-contact measurement reduces wear and operational costs.

Applications

Thermal Power Plants	Stack emissions from coal-fired boilers.
Cement & Steel Industries	Monitoring dust from kilns and furnaces.
Petrochemical Refineries	Emission control in processing stacks.
Metal Processing Units	Dust detection in smelting and grinding processes.
Fertilizer & Chemical Plants	Ensuring clean air discharge during production.
Waste Incineration	Monitoring hazardous dust emissions.
Air Quality Monitoring	Government and agency compliance checks.

This state-of-the-art dust monitoring system helps industries track emissions, improve air quality management, and achieve compliance with environmental regulations.

Continuous Emission Monitoring System (CEMS) for SO₂, NOₓ, CO, CO₂, and O₂

The Continuous Emission Monitoring System (CEMS) is a state-of-the-art solution for real-time measurement and reporting of gaseous pollutants such as SO₂, NOₓ, CO, CO₂, and O₂. It helps industries comply with CPCB (India), EPA, and other environmental regulations by ensuring continuous emission control and data transmission.

Key Features & Benefits

Real-Time Monitoring	Continuous and accurate measurement of: • SO₂ – Prevents acid rain formation • NOₓ – Controls smog and acid precursors • CO – Detects incomplete combustion • CO₂ – Tracks greenhouse gas emissions • O₂ – Assures combustion efficiency
Advanced Detection Technologies	NDIR, UV DOAS, and Electrochemical Sensors for high-precision monitoring.
Regulatory Compliance	Meets CPCB, USEPA (40 CFR Part 60/75), MOEFCC, and ISO standards.
Calibration & Self-Diagnostics	Automated system to maintain long-term accuracy.
Data Transmission	Supports CPCB/SPCB real-time connectivity via GPRS, Modbus, Ethernet, and Cloud.
Durability	IP65-rated for outdoor and industrial environments.
Low Downtime	24/7 operation with auto-clean and self-maintenance functions.

Applications

Thermal Power Plants	Emission monitoring from coal-fired boilers.
Cement & Steel Industries	Monitoring kilns, furnaces, and stacks.
Petrochemical Refineries	Tracking combustion and flare emissions.
Vehicle Emission Testing	Portable CEMS for automobile test centers.
Fertilizer & Chemical Plants	Process emissions control and analysis.
Waste Incineration	Ensures safe exhaust from hazardous waste processing.
Pollution Control Agencies	Ambient air quality monitoring and compliance.

This cutting-edge CEMS helps industries reduce environmental impact, improve operational efficiency, and meet emission compliance standards effectively.

Portable Multi-Parameter Water Quality Analyzer

The Portable Multi-Parameter Water Quality Analyzer is a compact, lightweight, and highly accurate instrument designed for on-site water testing in various environments. It provides real-time analysis of essential water quality parameters, helping industries, researchers, and environmental agencies ensure compliance and optimize water treatment processes.

Key Features & Benefits

Multi-Parameter Detection	Simultaneous measurement of pH, Turbidity, DO, TDS, Conductivity, Salinity, ORP, and Temperature.
Portable & Lightweight	Ideal for field applications with rugged and waterproof casing.
User-Friendly Interface	Digital display with intuitive one-touch calibration.
Long Battery Life	Supports USB charging and replaceable batteries for extended use.
Bluetooth & Data Logging	Real-time data storage and cloud connectivity.
Automatic Temperature Compensation	Ensures stable readings in varying conditions.
Low Maintenance	Replaceable sensors and minimal reagent use.

Applications

Environmental Monitoring	Testing lakes, rivers, reservoirs, and groundwater.
Industrial & Municipal Treatment	ETP/STP water testing and analysis.
Drinking Water Testing	Ensures potable water quality at source and point-of-use.
Construction & Infrastructure	Used for concrete and soil moisture quality control.
Food & Beverage	Monitors process water and discharge quality.
Pharma & Biotech	Used in research and ultrapure water analysis.
Power Plants	Analyzes boiler feed and cooling water.
Aquaculture & Fisheries	Ensures optimal water quality for aquatic life.

This all-in-one portable analyzer is an essential tool for real-time monitoring, environmental protection, and regulatory compliance across industries.

Online Phosphorus & Nitrogen Analyzer

The Online Phosphorus & Nitrogen Analyzer is a high-precision instrument designed for continuous monitoring of phosphorus and nitrogen compounds in water and wastewater. It supports environmental protection, process optimization, and regulatory compliance across industries.

Key Features & Benefits

Real-Time Monitoring	Continuously measures phosphorus and nitrogen compounds.
Advanced Detection	Colorimetric, UV absorption, and ISE technologies for high accuracy.
Automated Calibration	Ensures long-term precision with reduced manual intervention.
Remote Access	Supports SCADA, IoT, and cloud-based monitoring.
Regulatory Compliant	Meets CPCB, EPA, WHO, and ISO water standards.
Low Reagent Use	Cost-effective and eco-friendly operation.
Compact & Durable	Rugged design for industrial and outdoor use.

Applications

Wastewater Treatment (ETP/STP)	Optimizes nutrient removal and process control.
Drinking Water Systems	Ensures compliance and safety in water distribution.
Environmental Monitoring	Analyzes nutrient levels in rivers, lakes, and reservoirs.
Power Plants	Monitors boiler and cooling water nutrient load.
Chemical Industries	Tracks discharge and process water quality.
Food & Beverage	Improves effluent treatment and reuse possibilities.
Pharma & Biotech	Ensures ultrapure and effluent water control.

This analyzer offers precise nutrient analysis for regulatory compliance, environmental sustainability, and efficient water treatment in industrial and municipal sectors.

Online TOC (Total Organic Carbon) Analyzer

Overview: The Online TOC Analyzer is an advanced instrument designed for real-time monitoring of Total Organic Carbon (TOC) in water and wastewater. It ensures precise detection of organic contaminants, helping industries meet regulatory compliance, optimize water treatment processes, and maintain environmental sustainability.

Key Features & Benefits

Real-Time TOC Monitoring	Provides continuous measurement of organic carbon levels.
High-Precision Oxidation Technology	Uses UV-Persulfate, Combustion, or Electrolytic oxidation for accurate TOC detection.
Automated Calibration & Cleaning	Reduces maintenance and improves reliability.
Multiple Detection Ranges	Suitable for ultra-pure water, industrial effluents, and wastewater.
Data Logging & Remote Access	Supports SCADA, IoT, and cloud-based monitoring.
Regulatory Compliance	Meets CPCB, USEPA, FDA, and ISO water quality standards.
Low Operating Cost	Energy-efficient design with minimal reagent consumption.

Applications

Industrial Wastewater & Effluent Monitoring	Monitors organic contaminants in industrial wastewater.
Drinking Water & Purified Water Quality Control	Ensures TOC levels are within safe limits for drinking and purified water.
Power Plants (Boiler Feed Water & Condensate Monitoring)	Monitors TOC levels in boiler feed and condensate water.
Pharmaceuticals & Biotechnology (USP <643> Compliance)	Ensures compliance with USP <643> water quality standards in pharmaceutical production.
Food & Beverage Industry (Process Water Quality)	Monitors TOC in process water to maintain quality and safety standards.
Environmental Monitoring (Rivers, Lakes & Reservoirs)	Monitors organic contamination in natural water bodies for environmental protection.
Chemical & Petrochemical Industries	Ensures water used in chemical and petrochemical processes is within specified quality standards.

Why Choose Our Online TOC Analyzer?

Fast & Reliable Detection – Ensures efficient monitoring and process control.
Easy Integration – Compatible with existing plant control systems.
Customizable Solutions – Multiple configurations available based on industry needs.
Proven Performance – High durability and accuracy in harsh environments.

This TOC Analyzer is essential for industries that require precise organic contamination monitoring to ensure water quality, regulatory compliance, and environmental sustainability.

Online Water Quality Analyzer for pH, Turbidity, Chlorine, TDS, DO, MLSS, Silica, Sodium & Conductivity

Overview: The Online Water Quality Analyzer is an advanced real-time monitoring system designed to measure multiple critical water quality parameters, ensuring efficient process control and regulatory compliance. It is widely used in industrial, municipal, and environmental applications for continuous water and wastewater quality assessment.

Key Parameters Monitored

pH	Ensures the water’s acidity/alkalinity is within safe limits.
Turbidity	Measures the clarity of water by detecting suspended particles.
Chlorine	Monitors disinfection levels in drinking and industrial water.
TDS (Total Dissolved Solids)	Determines the concentration of dissolved salts and minerals.
DO (Dissolved Oxygen)	Indicates oxygen availability for aquatic life.
MLSS (Mixed Liquor Suspended Solids)	Crucial for wastewater treatment process control.
Silica	Prevents scaling in boilers, cooling towers, and industrial processes.
Sodium	Critical for water treatment in power plants and industrial applications.
Conductivity	Measures the ability of water to conduct electricity, indicating ionic concentration.

Features & Benefits

Real-Time Monitoring & Data Logging	Provides continuous measurement with cloud-based data access.
Multi-Parameter Integration	Reduces the need for multiple instruments, saving cost & space.
Automated Alarms & Alerts	Sends notifications via SMS/email for out-of-range values.
Remote Monitoring Capability	Compatible with SCADA, IoT & cloud-based platforms.
Compliance & Regulatory Standards	Helps industries meet CPCB, WHO, BIS, and EPA guidelines.
Durable & Low Maintenance	Designed for harsh industrial environments with long sensor life.

Applications

Industrial Water & Wastewater Treatment Plants (ETP/STP)	Ensures water quality in effluent and sewage treatment.
Drinking Water Treatment & Distribution	Monitors drinking water quality to meet safety standards.
Power Plants (Boiler & Cooling Water Monitoring)	Monitors water used in cooling and boiler systems to prevent damage.
Pharmaceuticals & Food Processing Units	Ensures clean water for production processes in sensitive industries.
Laboratories & Research Facilities	Continuous monitoring of lab water quality for experiments.
Environmental & River Water Monitoring	Monitors water quality in natural water bodies.
Chemical & Manufacturing Industries	Ensures process water quality meets industry standards.

Why Choose Our Online Water Quality Analyzer?

High-Accuracy Sensors for precise data measurement.
Modular & Scalable to suit different industrial needs.
Seamless Integration with existing plant control systems.
Energy Efficient & Cost-Effective for long-term savings.

This comprehensive water quality monitoring system helps industries and municipalities ensure safe, clean, and compliant water management while optimizing operational efficiency.

Effluent Monitoring System for COD, BOD, TSS, TDS, pH with CPCB Data Transmission

Overview: Effluent monitoring is essential for industries to comply with environmental regulations and ensure minimal impact on water bodies. This system continuously measures COD (Chemical Oxygen Demand), BOD (Biochemical Oxygen Demand), TSS (Total Suspended Solids), TDS (Total Dissolved Solids), and pH, transmitting real-time data to the Central Pollution Control Board (CPCB) server for regulatory compliance.

Key Features

Real-Time Monitoring of Key Parameters	Continuous monitoring of COD, BOD, TSS, TDS, and pH.
Online Data Transmission to CPCB & SPCB	Automatic transmission of data to CPCB and SPCB servers via GPRS, GSM, or IoT.
Advanced Sensor Technology	High-precision digital sensors for accurate measurements.
Industrial-Grade Durability	Designed for harsh environments like wastewater treatment plants.
Cloud & Remote Monitoring	Web-based dashboards and mobile apps for real-time access.

Applications

Industrial Effluent Treatment Plants (ETP)	Chemical, textile, pharmaceutical, food processing, and manufacturing industries.
Sewage Treatment Plants (STP)	Municipal wastewater discharge monitoring.
Marine & Port Facilities	Ensuring wastewater discharge meets marine standards.
Power Plants & Refineries	Managing wastewater discharge from thermal & nuclear plants.

Benefits

Regulatory Compliance	Ensures adherence to CPCB, SPCB, and NGT guidelines.
Environmental Protection	Prevents water pollution and ecosystem damage.
Cost Savings	Avoids fines, penalties, and shutdown risks due to non-compliance.
Improved Efficiency	Optimizes treatment processes with real-time data.

How It Works

1. Measurement	Sensors continuously measure COD, BOD, TSS, TDS, and pH levels in effluent.
2. Data Transmission	Real-time data is transmitted to CPCB and SPCB servers via GPRS, GSM, or IoT.
3. Compliance	Ensures compliance with environmental standards and regulations.

A real-time effluent monitoring system for COD, BOD, TSS, TDS, and pH ensures regulatory compliance and environmental protection, making it an essential tool for industries aiming to reduce their environmental footprint.

Hot Spot Infrared (IR) Technology for Conveyor Belts

Hot Spot Infrared (IR) Technology is used to monitor the temperature of conveyor belts in real-time by detecting temperature variations along the belt’s surface. This technology is particularly useful for identifying “hot spots” that could indicate issues such as friction, wear, electrical problems, or material blockages, all of which can cause system inefficiencies or even failures.

How It Works:

Infrared sensors or thermal cameras are installed along the conveyor belt or at critical points to detect temperature changes. The infrared radiation emitted by the surface is captured by the sensor, and any abnormal temperature variations (hot spots) are immediately detected. The system processes these readings to provide alerts for maintenance or corrective actions.

Key Features

Real-Time Temperature Monitoring	Continuous detection of temperature variations along the conveyor belt.
Hot Spot Detection	Identifies abnormal temperature spikes that could indicate friction, overheating, or potential failures.
Preventive Maintenance	Enables early detection of issues such as misalignment, wear, or damage, reducing downtime and extending the conveyor’s lifespan.
Non-Contact Measurement	Safe, non-invasive method of monitoring that doesn’t require physical contact with the belt or materials.
Integration with Control Systems	Can be integrated with SCADA or PLC systems for automated alerts and real-time monitoring on control panels.
Data Logging and Analytics	Stores temperature data for historical analysis, trend identification, and maintenance planning.

Applications

Mining and Quarrying	Conveyor belts in mining operations are often subject to heavy loads and extreme conditions, making thermal monitoring essential for safety and performance.
Food Processing	Monitors conveyor belts in food production facilities to ensure proper temperature control, especially in cooking or cooling processes.
Material Handling and Packaging	Detects problems in conveyor systems used in sorting, packaging, or material handling processes where high-speed operation increases the risk of mechanical failures.
Recycling	Detects blockages or malfunctions in conveyors handling recyclable materials, where material buildup can generate excess heat and pose a risk to the system.
Logistics and Warehouse	Monitors temperature changes in high-traffic conveyors, which may be impacted by operational stress, helping maintain optimal functionality.

Benefits

Increased Safety	Prevents overheating, friction-related fires, or breakdowns by catching potential issues early.
Operational Efficiency	Reduces unplanned downtime and extends the life of the conveyor system.
Cost-Effective	Minimizes the need for costly repairs by detecting issues before they escalate into major failures.
Automation and Alerts	Automatically sends alerts when a hot spot is detected, prompting maintenance teams to act swiftly.
Predictive Maintenance	Historical temperature data and trends can be analyzed to predict when parts will likely fail, facilitating proactive maintenance.

Hot Spot IR for Conveyor Belts is an invaluable tool in industries where conveyor systems are vital to production. By providing real-time monitoring and early detection of potential issues, it ensures optimal performance, safety, and reliability.

Online Thermal Imager

An Online Thermal Imager is a high-tech device used to capture and analyze the infrared radiation emitted by objects in real-time, creating thermal images or “thermographs.” These images represent temperature variations on the surface of the object, allowing operators to monitor processes, detect anomalies, and perform diagnostics without physical contact.

How It Works:

Thermal imagers detect infrared radiation emitted from surfaces. The device’s sensor converts the infrared radiation into an electrical signal, which is then processed to create a thermal image. These images are displayed in different color palettes that represent various temperature ranges.

Key Features

Real-Time Monitoring	Provides continuous temperature mapping and immediate feedback for quick decision-making.
Non-Contact Measurement	Ensures safety and prevents damage to components.
High-Resolution Imaging	Captures detailed temperature variations to detect hot spots, leaks, or faults.
Advanced Color Palettes	Visualize temperature differences with customized color gradients for clearer analysis.
Live Streaming	Enables remote monitoring of high-risk or hard-to-reach areas.
Integration with Control Systems	Compatible with SCADA, PLCs, and other automation systems for seamless process control.
Data Logging	Offers the ability to store thermal images and data for future analysis, comparison, or documentation.

Applications

Electrical Systems	Detect hot spots in electrical panels, transformers, and circuit breakers. Prevent electrical failures by identifying potential hazards early.
Mechanical Systems	Monitor machinery for signs of overheating, misalignment, or excessive friction. Essential for predictive maintenance and troubleshooting.
Building Inspections	Identify insulation gaps, leaks, and moisture intrusion in buildings. Improve energy efficiency by detecting heat loss.
Process Industries	Monitor high-temperature processes such as metal forging, glass production, and chemical reactions. Identify temperature anomalies in reactors, pipelines, and other critical equipment.
HVAC Systems	Inspect heating, ventilation, and air conditioning systems for efficiency and leaks. Ensure proper functioning of climate control systems.
Medical Applications	Monitor human body temperature for health diagnostics and monitoring purposes. Assist in fever detection and screening for diseases.

Advantages

Enhanced Safety	Non-contact technology reduces the risk of injury while inspecting hazardous or high-voltage equipment.
Improved Efficiency	Allows for quick identification of faults or inefficiencies, reducing downtime and repair costs.
Preventive Maintenance	Identifies potential problems before they lead to system failures, minimizing unplanned outages.
High Accuracy	Provides precise temperature measurement and visual analysis for more informed decision-making.
Remote Access	Enables monitoring of difficult-to-reach or hazardous areas, improving operational flexibility.

Types of Online Thermal Imagers

Fixed Thermal Imagers	Mounted permanently at critical points in a facility for continuous, automated monitoring. Ideal for large-scale operations where continuous surveillance is needed.
Portable Thermal Imagers	Handheld models for on-the-go inspection. Useful for regular maintenance checks, inspections, and troubleshooting.

An Online Thermal Imager is a vital tool for industries that require continuous, real-time temperature monitoring, offering proactive maintenance, energy efficiency, and improved safety. Whether for electrical systems, process industries, or mechanical equipment, these devices are indispensable in modern industrial environments.

Online Radiation Pyrometer

An Online Radiation Pyrometer is a non-contact temperature measurement device designed to monitor and measure high temperatures in real-time by detecting the thermal radiation emitted by an object. These devices are ideal for applications where physical contact is impractical or impossible due to extreme heat, movement, or inaccessibility.

Working Principle

The pyrometer operates based on the principle of Planck’s Law, which relates the intensity of emitted radiation to an object’s temperature. By analyzing the infrared or visible radiation emitted by a hot object, the pyrometer calculates its temperature accurately without physical contact.

Key Features

Non-Contact Measurement	Enables precise temperature monitoring from a safe distance.
Real-Time Monitoring	Provides continuous temperature readings for process control.
Wide Temperature Range	Capable of measuring extreme temperatures, typically from 400°C to 3000°C.
Compact and Rugged Design	Built for industrial environments, resistant to dust, vibrations, and high temperatures.
Multiple Wavelength Options	Includes single-color and dual-color (ratio) pyrometers for enhanced accuracy.
Digital Connectivity	Integrates with systems via Modbus, 4-20mA, or Ethernet for remote monitoring.

Applications

Metallurgy	Monitoring molten metal and forging processes.
Glass and Ceramics	Measuring kiln temperatures and glass-melting processes.
Cement Plants	Kiln shell and clinker monitoring.
Power Plants	Monitoring boiler tubes, steam pipes, and turbine components.
Aerospace and Automotive	Heat treatment of engine parts and testing high-temperature materials.
Chemical and Petrochemical	Monitoring reactors and combustion processes.

Advantages

High Accuracy	Reliable performance even in extreme temperatures.
Non-Destructive	No risk of contamination or damage to the object being measured.
Fast Response Time	Instantaneous readings enable real-time control.
Durability	Withstands harsh industrial conditions.
Easy Integration	Compatible with industrial automation systems for process optimization.

Types of Online Radiation Pyrometers

Single-Color Pyrometer	Measures radiation at a single wavelength. Ideal for applications with stable emissivity.
Dual-Color (Ratio) Pyrometer	Measures radiation at two wavelengths, compensating for emissivity variations. Suitable for dusty, smoky, or partially obscured environments.
Infrared Pyrometer	Measures infrared radiation for lower temperature ranges.

An Online Radiation Pyrometer is a critical tool for industries requiring precise and reliable temperature monitoring, enhancing process efficiency, safety, and product quality in high-temperature environments.

Manifold Adapters and SS Fittings

Manifold adapters and SS fittings are essential components used across multiple industries for connecting, isolating, and ensuring leak-proof performance in piping systems. Below is a breakdown of the key components, features, applications, and advantages.

Manifold Adapters

2-Way Manifolds	Simplest design for basic applications.
3-Way Manifolds	Ideal for pressure gauge isolation and equalization.
5-Way Manifolds	Used in advanced systems for calibration, isolation, and venting.

SS Fittings

Tube Fittings	For seamless and leak-proof tubing connections.
Pipe Fittings	Includes elbows, tees, reducers, and couplings for piping systems.
Compression Fittings	Easy to install and used for high-pressure applications.
Swage Nipples and Reducers	Transition between different pipe sizes.
Quick Connect Fittings	For fast, tool-free connections.

Features

Compact Design	Space-efficient for easy installation.
Corrosion-Resistant Materials	Made from SS 316, SS 304, and other durable alloys.
Leak-Proof Connections	Ensures reliability in high-pressure systems.
Versatile Fluid Compatibility	Works with various gases and liquids.

Advantages

Durability	Long-lasting and resistant to wear and tear.
Leak Prevention	Precision engineering ensures tight seals.
Wide Compatibility	Usable with different fluids, gases, and systems.
Ease of Maintenance	Simplifies installation, inspection, and repairs.

Applications

Oil & Gas	For high-pressure and corrosive applications.
Power Plants	Ensures precision in instrumentation and control systems.
Pharmaceuticals	Meets hygienic and cleanroom standards.
Water Treatment	Handles harsh chemicals and ensures leak-free systems.
Food & Beverage	Safe and sanitary for food-grade applications.

Manifold adapters and SS fittings are indispensable in industrial systems, offering reliability, versatility, and safety for diverse applications, from instrumentation to complex piping networks.

Motion Sensor

A Motion Sensor is an electronic device designed to detect physical movement in a specific area. It is a vital component in automation, security, and energy-saving systems, enabling devices to respond to motion-based triggers.

How It Works

Motion sensors work by detecting changes in the environment caused by movement. They use various technologies to sense motion, such as infrared radiation, sound waves, or electromagnetic waves, and convert this data into electrical signals to trigger a response.

Types of Motion Sensors:

Type	Description
Passive Infrared (PIR) Sensors	Detect body heat (infrared radiation) emitted by people or animals. Commonly used in security systems and home automation.
Microwave Sensors	Emit microwaves and measure the reflection caused by moving objects. Can cover larger areas but are more sensitive to interference.
Ultrasonic Sensors	Emit high-frequency sound waves and measure the echo from moving objects. Effective for detecting subtle movements.
Dual-Technology Sensors	Combine PIR and microwave or ultrasonic technologies to reduce false alarms.
Camera-Based Sensors	Use video analytics to detect motion through image changes. Often integrated into advanced security systems.
Vibration-Based Sensors	Detect motion through vibrations on surfaces. Useful in machinery monitoring and industrial applications.

Applications

Application	Description
Security Systems	Detect intruders and trigger alarms or surveillance cameras.
Home Automation	Automatically turn on lights, fans, or appliances when motion is detected.
Industrial Automation	Monitor equipment movement and ensure safety in hazardous areas.
Retail and Commercial Spaces	Activate displays or track foot traffic for customer analytics.
Energy Saving	Reduce energy usage by activating systems only when motion is present (e.g., lights, HVAC).

Advantages

Advantage	Description
Energy Efficiency	Saves energy by turning systems on/off based on occupancy.
Enhanced Security	Detects unauthorized access or suspicious movement.
Automation Convenience	Adds smart functionality to homes and businesses.
Low Maintenance	Reliable and long-lasting performance.

Industries Benefiting from Motion Sensors

Residential: Smart homes and energy-efficient lighting.
Industrial: Automation and equipment monitoring.
Retail: Customer tracking and interactive displays.
Healthcare: Monitoring patient movement in hospitals or elderly care facilities.

A motion sensor is an essential tool for creating efficient, secure, and smart environments, catering to a wide range of industries and applications.

Acoustic Sensor

An Acoustic Sensor is a device that detects sound waves or vibrations in the environment and converts them into measurable electrical signals. These sensors are widely used in industrial, environmental, and security applications, offering real-time insights into sound-based phenomena.

How It Works

Acoustic sensors detect changes in sound pressure or vibrations caused by sound waves. They often use materials like piezoelectric crystals, capacitive membranes, or microphones to sense and process acoustic signals.

Types of Acoustic Sensors:

Type	Description
Microphone-Based Sensors	Detect audible sounds within the human hearing range. Used in voice recognition, communication devices, and security systems.
Ultrasonic Sensors	Capture high-frequency sound waves beyond the human hearing range (above 20 kHz). Commonly used in object detection, level measurement, and flow monitoring.
Vibration-Based Acoustic Sensors	Detect mechanical vibrations caused by sound waves. Ideal for industrial applications, such as machinery monitoring.
Fiber Optic Acoustic Sensors	Use light waves to detect acoustic signals. Highly sensitive and resistant to electromagnetic interference, making them suitable for harsh environments.

Applications

Application	Description
Industrial Monitoring	Detect machinery malfunctions, leaks, or structural vibrations. Monitor conveyor belts, pipelines, and rotating equipment.
Security Systems	Recognize glass breakage, gunshots, or unusual noise patterns. Provide advanced intrusion detection for buildings or perimeters.
Environmental Monitoring	Measure sound pollution in urban areas. Monitor wildlife sounds for ecological studies.
Medical Applications	Analyze heartbeats, respiratory sounds, or joint vibrations. Used in diagnostic devices and health monitoring systems.
Automotive Industry	Monitor engine sounds and vibrations to detect faults or optimize performance.

Advantages

Advantage	Description
Non-Invasive	Acoustic sensors do not require direct contact with objects or surfaces.
High Sensitivity	Detect even subtle changes in sound, providing accurate data for various applications.
Wide Range of Applications	From security to industrial and medical uses, acoustic sensors are versatile.
Real-Time Monitoring	Provide immediate feedback and monitoring, making them suitable for dynamic environments.

Industries Benefiting from Acoustic Sensors

Automotive: Engine monitoring and diagnostics.
Industrial: Equipment monitoring and failure prediction.
Environmental: Noise pollution detection and wildlife monitoring.
Healthcare: Medical diagnostic tools, such as stethoscopes and hearing aids.

Acoustic sensors are integral to applications requiring sound detection and analysis, offering numerous benefits across industries and helping to enhance safety, efficiency, and data accuracy.

Weighing Controller

A Weighing Controller is a precision device used in industrial applications to monitor, control, and manage weighing processes. It is essential for systems requiring accurate weight measurement and automation, including batching, filling, and material handling.

Key Features

High Accuracy	Delivers precise weight readings with minimal error.
Real-Time Monitoring	Continuously displays updated weight values.
Multiple Inputs	Supports load cells and strain gauge sensors.
Advanced Communication	Interfaces via RS485, Modbus, PROFIBUS, or Ethernet.
Programmable Functions	Customizable for batching, dosing, and filling.
Durable Design	Withstands harsh industrial conditions.
Display Options	Clear digital or touchscreen interface.
Alarm Systems	Provides alerts for setpoints or errors.

Advantages

Enhanced Productivity	Automates weighing to reduce manual work.
Cost-Efficiency	Minimizes material waste and increases accuracy.
Versatility	Supports platform, hopper, and belt scales.
Flexibility	Works for both static and dynamic weighing.
Data Logging	Records measurements for tracking and compliance.

Applications

Batching and Dosing	Used in chemical, pharmaceutical, and food sectors.
Filling Machines	Controls fill weights for packaging materials.
Conveyor Systems	Manages flow and weight of materials in transit.
Tanks and Silos	Monitors stored inventory weights.
Industrial Automation	Integrates with PLCs for automated control.

How It Works

Input from Load Cells: The load cells detect the weight and convert it into an electrical signal.
Signal Processing: The controller interprets this signal to calculate an accurate weight value.
Control and Output: Based on the reading, it can trigger other actions like stopping a conveyor or starting a filling process.
Data Communication: The controller sends real-time data to external systems like PLCs or SCADA for logging and monitoring.

Weighing Controllers are vital for improving accuracy, automation, and productivity in industrial weighing and material handling applications.

Belt Scale with Speed Sensor and Integrator

A Belt Scale System with a speed sensor and integrator is a critical solution for accurately measuring the flow rate and total weight of materials transported on conveyor belts. These systems combine a load cell (for weight measurement), a speed sensor (to measure belt speed), and an integrator (to calculate flow rate and total weight) for real-time monitoring and control of bulk material handling.

Key Components

Belt Scale	Installed under the conveyor belt with load cells to measure material weight.
Speed Sensor	Mounted on the drive or return pulley to detect belt speed.
Integrator	Combines speed and weight to calculate flow rate and total weight; interfaces with control systems.

Key Features

High Accuracy	Precise weight and flow measurement in real time.
Real-Time Monitoring	Instant feedback improves process control.
Durable Design	Handles heavy-duty conditions like dust and vibration.
Advanced Integration	Supports Modbus, PROFIBUS, and Ethernet protocols.
Dynamic Compensation	Adjusts for belt tension, load distribution, and other variables.

Advantages

Improved Process Control	Enhances efficiency with accurate material tracking.
Cost-Effective	Reduces waste and operational downtime.
Versatile Applications	Handles a wide range of bulk materials.
Seamless Automation	Integrates easily with PLCs and SCADA systems.

Applications

Mining & Quarrying	Monitoring ore, coal, and aggregates.
Cement Industry	Controlling raw material flow like limestone and clinker.
Power Plants	Managing coal feed to boilers.
Chemical & Fertilizer Plants	Measuring granular or powdered materials.
Food & Beverage	Monitoring grains, sugar, or bulk food products.

How It Works

Weight Measurement: Load cells measure material weight on the belt.
Speed Detection: Speed sensor records belt velocity.
Integration: Integrator calculates flow rate and total weight using:
Flow Rate = Belt Weight × Belt Speed

A Belt Scale System with speed sensors and integrators is a reliable and efficient solution for managing bulk material handling, improving productivity, and ensuring precise inventory control.

Solid Flow Meter

A Solid Flow Meter is a precision instrument designed to measure the flow rate of bulk solids, such as powders, granules, or pellets, in industrial processes. It ensures accurate monitoring and control of solid materials moving through conveyors, pipes, or chutes.

Key Features

Non-Intrusive Measurement	Uses impact, vibration, or radiometric principles for minimal interference.
Wide Material Compatibility	Handles materials like cement, grains, sugar, coal, and chemicals.
High Accuracy	Reliable even in dynamic flow conditions.
Robust Construction	Withstands dust, high temperatures, and vibrations.
Real-Time Monitoring	Continuous data for process optimization.

Types of Solid Flow Meters

Impact Flow Meters	Measures the force of impact as solids strike a sensor plate.
Radiometric Flow Meters	Uses gamma rays to measure bulk flow without contact.
Electromagnetic Solid Flow Meters	Monitors conductive solids with electromagnetic technology.
Vibratory Flow Meters	Measures material flow based on vibration frequencies.

Advantages

Enhanced Process Control	Optimizes material usage and reduces waste.
Non-Contact Options	Minimizes wear and maintenance.
Wide Range of Applications	Handles low to high flow rates effectively.
Customizable Solutions	Adaptable to specific process requirements.
Integration Friendly	Works with PLCs and SCADA systems for automation.

Applications

Cement Industry	Monitoring raw material and clinker flow.
Food & Beverage	Measuring flour, sugar, grains, and ingredients.
Power Plants	Monitoring coal flow to boilers.
Chemical Industry	Tracking powders, resins, or granules in production.
Pharmaceuticals	Precise measurement of powdered drug materials.

Solid Flow Meters are essential for maintaining efficiency, consistency, and accuracy in bulk material handling processes across various industries.

Smart Positioner

A Smart Positioner is an advanced device used to control and optimize the position of a valve or actuator based on a control signal. It improves the accuracy, reliability, and performance of valve operations in industrial automation systems by incorporating intelligent diagnostics and communication capabilities.

Key Features

Digital Control	Uses microprocessor technology for precise valve positioning.
High Accuracy	Ensures minimal hysteresis and enhanced process control.
Auto-Calibration	Simplifies installation and setup with automated calibration functions.
Communication Protocols	Supports HART, FOUNDATION Fieldbus, or PROFIBUS for integration into modern control systems.
Built-In Diagnostics	Monitors valve health, including friction, wear, and leaks, for predictive maintenance.
Energy Efficiency	Optimizes air consumption, reducing operational costs.

Advantages

Improved Process Efficiency	Delivers precise control for critical applications.
Real-Time Feedback	Provides position and status updates for enhanced monitoring.
Reduced Downtime	Predictive diagnostics help identify issues before failures occur.
Easy Integration	Compatible with a wide range of actuators and valves.
Long Service Life	Rugged design for use in harsh industrial environments.

Applications

Oil & Gas	Control of flow and pressure in pipelines and refineries.
Chemical Processing	Precise control of fluids and gases in reactors and separators.
Power Plants	Steam and fuel valve control for efficient power generation.
Water & Wastewater	Regulating flow and pressure in treatment plants.
Pharmaceutical & Food Industries	Ensuring accurate process control in hygienic environments.

Smart Positioners are indispensable in modern industrial automation, offering superior control, reduced energy consumption, and improved process safety.

Electromagnetic Flow Meter (Magmeter)

An Electromagnetic Flow Meter (Magmeter) is a highly accurate and reliable instrument designed to measure the flow of electrically conductive fluids in closed pipes.
It operates based on Faraday’s Law of Electromagnetic Induction, which states that when a conductive fluid flows through a magnetic field, a voltage is induced proportional to the fluid’s velocity.

Key Features

No Moving Parts	Minimal wear and reduced maintenance.
Wide Range of Applications	Ideal for water, wastewater, slurries, and other conductive fluids.
High Accuracy	Typically within ±0.5% of the measured value.
Bi-Directional Flow Measurement	Capable of measuring flow in both directions.
Large Size Range	Available from a few millimeters to several meters.

Main Components

Magnetic Field	Generated by coils to induce voltage in the fluid.
Electrodes	Detect the induced voltage.
Liner	Non-conductive lining material for protection and accuracy.
Transmitter	Processes voltage signals into flow rate data.

Advantages

Handles Suspended Solids	Perfect for fluids with particles or solid content.
No Pressure Drop	Obstruction-free flow ensures efficiency.
Long Lifespan	Durable construction offers extended operational life.

Applications

Water & Wastewater Treatment	Monitoring flow rates in treatment plants.
Industrial Processes	Chemical, food & beverage, and pulp & paper industries.
Energy Sector	Cooling water measurement in power plants.

Electromagnetic Flow Meters are the ideal choice for industries that demand precision, maintenance-free operation, and long-term reliability when measuring conductive liquids.

Process Laser Gas Analyzer

A Process Laser Gas Analyzer is an advanced measurement instrument that uses tunable diode laser absorption spectroscopy (TDLAS) or similar laser-based technologies to measure gas concentrations in real-time. It provides highly accurate and fast analysis of gases in industrial processes, ensuring safety, efficiency, and compliance with environmental regulations.

Key Features

High Precision	Detects trace gas levels with superior accuracy.
Real-Time Monitoring	Provides continuous, fast-response measurements.
Non-Contact Measurement	Uses laser beams for in-situ (direct) or extractive gas analysis.
Selective Detection	High sensitivity to specific gas molecules, minimizing interference.
Wide Compatibility	Measures various gases, including O₂, CO, CO₂, NH₃, H₂O, HCl, and CH₄.
Robust Design	Operates reliably in extreme environments (high temperatures, pressure, or dusty conditions).

Advantages

No Drift	Laser-based technology ensures long-term measurement stability.
Low Maintenance	Minimal moving parts reduce maintenance needs.
Fast Response Time	Ideal for critical applications requiring immediate adjustments.
High Selectivity	Reduces interference from other gases or environmental factors.
Energy Efficiency	Consumes less power compared to conventional analyzers.
Compliance Support	Ensures adherence to environmental and safety regulations.

Applications

Oil & Gas	Monitoring flue gas, hydrogen sulfide, and hydrocarbons in refineries.
Power Plants	Analyzing emissions (e.g., NOx, CO₂, SO₂) for combustion control.
Chemical & Petrochemical	Measuring ammonia, hydrogen, and other critical gases in processes.
Cement & Steel Industries	Monitoring exhaust gases for efficiency and emission control.
Environmental Monitoring	Detecting pollutants in air quality assessments.
Pharmaceutical & Food	Ensuring gas purity and controlling processes.

Process Laser Gas Analyzers are vital tools for optimizing process control, improving safety, and meeting stringent environmental standards in various industries.

Temperature Transmitter

A Temperature Transmitter is a device designed to convert temperature readings from sensors (such as RTDs or thermocouples) into standardized output signals, typically 4-20 mA or digital protocols, for process monitoring and control. These transmitters are available in three key mounting types: Head-Mount, Field-Mount, and Rail-Mount.

1. Head-Mount Temperature Transmitter

Installed directly in the sensor connection head, this type is compact and ideal for localized installations.

Features

Compact design	For direct mounting on sensors.
Signal conversion	Converts RTD/thermocouple input into 4-20 mA or digital signal.
High accuracy	Resistant to temperature interference.
Smart communication	Easy calibration with HART, PROFIBUS protocols.

Applications

Industrial Temperature Monitoring	Boilers, furnaces, etc.
Chemical & Petrochemical Industries	Temperature monitoring in harsh conditions.

2. Field-Mount Temperature Transmitter

Housed in robust enclosures, field-mount transmitters are ideal for harsh environments.

Features

Weatherproof & Explosion-proof	Ideal for outdoor harsh environments.
Remote Installation	For better accessibility in tough environments.
Advanced Diagnostics	With communication options for ease of monitoring.

Applications

Outdoor Installations	Oil & Gas, Power Plants, Refineries.
High Vibration & Extreme Temperatures	For challenging process conditions.

3. Rail-Mount Temperature Transmitter

Designed for DIN rail installation in control panels, rail-mount transmitters are ideal for centralized setups.

Features

Compact Design	For mounting on DIN rails.
Multiple Inputs Supported	RTD, thermocouple, mV input options.
Reliable Signal Conversion	Easy wiring and installation in control rooms.
High EMC Resistance	Ideal for industrial environments.

Applications

Centralized Monitoring	For control rooms.
Industrial Automation	Building management systems.

Temperature Transmitters (Head, Field, or Rail Mount) offer versatility, accuracy, and reliability for seamless integration in diverse temperature monitoring applications across industries.

Pressure / DP Transmitter

A Pressure Transmitter is a highly accurate device used to measure pressure in gases, liquids, or steam. It converts pressure readings into an electrical signal, enabling easy monitoring and control in industrial processes.

Key Features

High Accuracy	Provides precise measurements, typically within ±0.1% to ±0.5% of full scale.
Versatile Measurement	Measures gauge, absolute, and differential pressure.
Durable Design	Built to withstand harsh environments, including high temperatures, corrosive substances, and extreme pressures.
Advanced Communication	Compatible with HART, Modbus, or other communication protocols for seamless integration.
Compact and Robust	Designed for easy installation in tight or rugged industrial spaces.

Advantages

Reliable Performance	Reliable performance even in extreme operating conditions.
Maintenance-Free Operation	Due to rugged construction, they require little to no maintenance.
Multi-Parameter Options	Available for measuring pressure, flow, and level.
Wide Pressure Range Compatibility	Compatible with a wide range of pressure requirements for diverse applications.

Applications

Oil & Gas	Monitoring pipeline and wellhead pressures.
Chemical Industry	Pressure control in reactors and storage tanks.
Power Plants	Steam pressure measurement in boilers and turbines.
Water & Wastewater	Monitoring water pressure in distribution systems.
Food & Beverage	Ensuring consistent pressure in processing lines.

Pressure Transmitters are indispensable for accurate pressure monitoring, ensuring process safety, efficiency, and reliability across industries.

Radar/Ultrasonic Level Transmitter

A Radar/Ultrasonic Level Transmitter is a non-contact device used to measure the level of liquids or solids in tanks, silos, or open channels.
It operates by emitting ultrasonic sound waves toward the material surface and measuring the time taken for the echo to return, calculating the distance and level accurately.

Key Features

Non-Contact Measurement	Prevents contamination and wear, ensuring long-term reliability.
Wide Range of Applications	Suitable for liquids, slurries, and bulk solids.
High Accuracy	Typically accurate within ±0.25% to ±0.5% of the range.
Simple Installation	Easy to mount without the need for complex setup.
Environmental Adaptability	Handles varying temperatures and pressures effectively.

Advantages

Cost-Effective Design	Low maintenance and affordable long-term operation.
Safe for Hazardous Materials	Non-contact operation makes it safe for corrosive or hazardous materials.
Versatile Usage	Effective in both open and closed containers.
Easy Integration	Compatible with standard communication protocols for seamless system integration.

Applications

Water & Wastewater	Monitoring levels in tanks, reservoirs, and open channels.
Chemical Industry	Measuring levels of non-corrosive or mildly corrosive liquids.
Food & Beverage	Tracking liquid levels in hygienic environments.
Industrial Processes	Measuring bulk solids like grains or powders.

Radar/Ultrasonic Level Transmitters offer reliable, maintenance-free level measurement for a broad range of industrial and commercial applications.

Portable Ultrasonic Flow Meter

A Portable Ultrasonic Flow Meter is a lightweight, versatile device designed for temporary flow measurement of liquids in closed pipes.
Using Transit-Time Technology, it calculates flow rate by measuring the time difference of ultrasonic signals traveling upstream and downstream through the fluid.

Key Features

Portable Design	Compact and easy to carry for on-site measurements.
Non-Invasive Measurement	Clamp-on sensors ensure no pipe cutting or process interruption.
Wide Compatibility	Works with various pipe materials and liquids, including clean water, chemicals, and oils.
High Accuracy	Typically provides accuracy within ±1% of the reading.
User-Friendly Interface	Equipped with digital displays and data logging for quick setup and easy data analysis.

Advantages

Quick Installation	Saves time with quick installation and setup.
No Contamination Risk	Eliminates contamination and pressure loss risks.
Ideal for Temporary Measurement	Perfect for system diagnostics and spot measurements.
Industrial Durability	Designed to endure rugged industrial environments.

Applications

Water Treatment Plants	Flow monitoring for process optimization.
Energy Audits	Analyzing flow in HVAC and industrial systems for energy efficiency.
Oil, Gas, and Chemical Industries	Temporary measurement for maintenance and operations.
Troubleshooting and Maintenance	Quick system diagnostics without disrupting processes.

Portable Ultrasonic Flow Meters are indispensable tools for professionals requiring accurate, flexible, and non-invasive flow measurement on the go.

Compressed Air Flow Meter

A Compressed Air Flow Meter is a specialized device designed to measure the flow rate, consumption, and efficiency of compressed air systems.
It ensures accurate monitoring, helping to optimize energy use, reduce costs, and detect leaks in compressed air networks.

Key Features

High Accuracy	Measures flow with precision, even at varying pressures and temperatures.
Wide Range	Compatible with different flow rates and pipe sizes.
Non-Intrusive Options	Some models offer clamp-on designs for easy installation without cutting pipes.
Multi-Parameter Measurement	Monitors flow, pressure, and temperature simultaneously for comprehensive analysis.

Advantages

Leak Detection	Reduces energy waste by identifying and locating leaks early.
Improves System Efficiency	Helps optimize compressed air usage and manage operating costs.
Durable Design	Built for long-term performance in demanding industrial environments.
Gas Compatibility	Works with compressed air, nitrogen, and other inert gases.

Applications

Industrial Manufacturing Plants	Monitoring and optimizing compressed air systems in factories.
Compressed Air Audits	Evaluating system performance for energy efficiency improvements.
HVAC Systems and Pneumatic Operations	Ensuring efficient air distribution and usage.
Automotive, Food, and Pharmaceutical Industries	Monitoring air usage in critical and sensitive applications.

Compressed Air Flow Meters are essential tools for maintaining efficient, leak-free, and cost-effective compressed air systems.

Coriolis Mass Flow Meter

A Coriolis Mass Flow Meter is a highly precise instrument designed to directly measure the mass flow rate of
liquids and gases. It operates based on the Coriolis Effect, where a vibrating flow tube experiences
deflection due to the movement of fluid mass through it. This deflection is proportional to the mass flow rate, providing a direct
and highly accurate measurement.

Key Features

Direct Mass Flow Measurement	No need for density or volume conversion.
High Accuracy	Up to ±0.1% for liquids and ±0.5% for gases.
Multi-Variable Measurement	Measures mass flow, density, temperature, and viscosity.
Wide Fluid Compatibility	Suitable for liquids, gases, slurries, and corrosive fluids.

Advantages

No Moving Parts	Ensures durability and low maintenance.
High Reliability	Ideal for critical and demanding applications.
Wide Operating Range	Handles wide temperature and pressure variations.
Insensitive to Fluid Property Changes	Stable performance despite viscosity and density changes.

Applications

Oil & Gas	Custody transfer and process monitoring.
Chemical Industry	Measurement of aggressive or high-viscosity fluids.
Food & Beverage	Precise ingredient dosing and quality control.
Pharmaceuticals	Accurate mass flow measurement for sensitive processes.

Coriolis Mass Flow Meters are considered the gold standard for applications requiring the highest
accuracy and reliability in mass flow and density measurement.

DP Flow Meter for Steam, Air

A DP Flow Meter for Steam, Air is a precision device used to measure the pressure difference between two points in a system.
It is widely used for applications involving steam, air, gas, or liquids to monitor flow, level, and pressure with high accuracy.

Key Features

High Precision	Measures differential pressure with accuracy up to ±0.1% of full scale.
Multi-Fluid Compatibility	Suitable for steam, compressed air, natural gas, and liquids.
Rugged Construction	Withstands high temperatures, corrosive environments, and extreme pressures.
Advanced Connectivity	Supports HART, Modbus, FOUNDATION Fieldbus, and PROFIBUS protocols.
Wide Range	Available in various pressure ranges to meet industrial needs.

Advantages

Reliable and Stable Measurement	Performs consistently under varying process conditions.
Supports Flow Applications	Ideal for use with orifice plates, venturis, and pitot tubes.
Safe Monitoring	Ensures safe operation in high-pressure steam and gas systems.
Low Maintenance	Durable design minimizes service needs.
Compact and Easy Installation	Fits seamlessly into existing systems.

Applications

Steam Systems	Monitoring flow and pressure in boilers and turbines.
HVAC Systems	Measuring airflow across filters and ducts.
Oil & Gas	Monitoring gas flow and pipeline integrity.
Chemical Industry	Pressure control in reactors and separators.
Water & Wastewater	Liquid level measurement in closed or pressurized tanks.

DP Flow Meters are essential for optimizing efficiency and safety in industrial processes involving
steam, air, and gas systems.

Contact Us

Sales

Technical Service

Engineering Solutions

Quick Links

Location
